jDeploy Developer Guide

Introduction

jDeploy allows Java developers to deploy desktop applications as native bundles on Macintosh, Windows, and Linux. Unlike other deployment solutions, jDeploy doesn’t require any third party tools (other than OpenJDK), and can build native installers for Mac, Windows, and Linux on any platform. For example, you can build a native Windows installer on Linux or Mac, and vice versa. Applications deployed using jDeploy can also receive updates automatically as they become available, so you can be assured that your users will always be working with the latest version of your application.

Note	Apps distributed with jDeploy can also be installed as command-line apps using `npm`. See Command-line Distribution for more information about that.

GUI

jDeploy provides a graphical user interface that makes it easy to configure your app’s deployment settings such as icons, splash screens, file associations, etc… After you’re satisfied with the settings, press "Publish", and it will publish your app so that users can download the latest version.

Figure 1. The jDeploy GUI allows you to configure and publish your app.

Download Page

When you publish your application using jDeploy, your users will instantly be able to download your app at https://www.jdeploy.com/~YOUR-APP-NAME

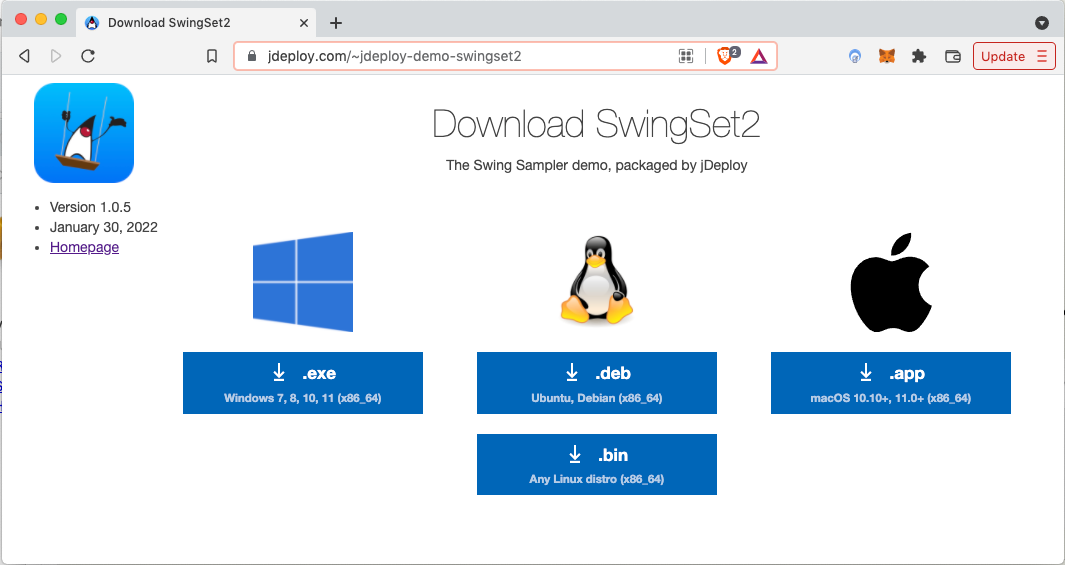

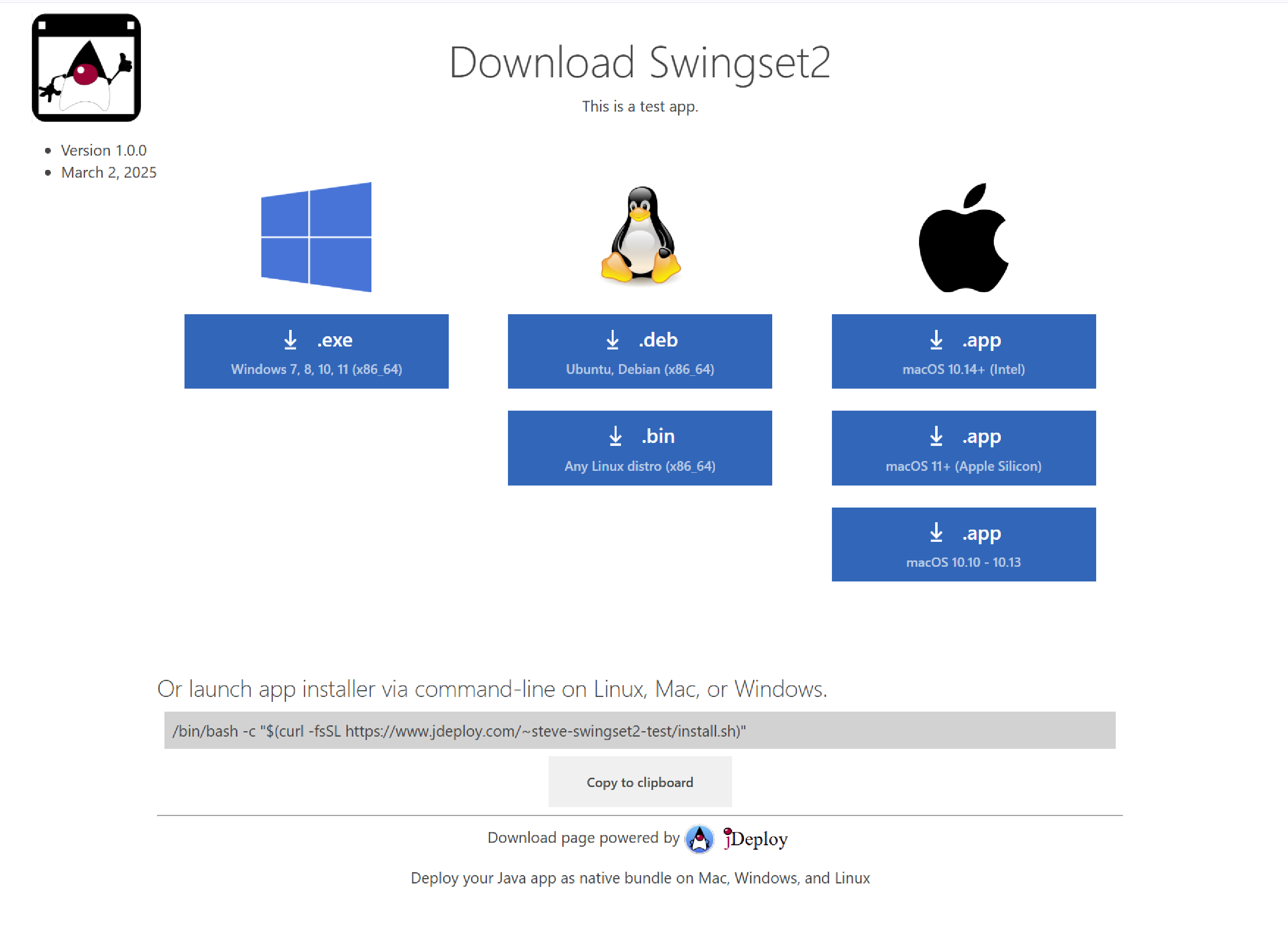

Figure 2. Example download page the Java SwingSet demo app.

The download page includes links for Windows, Mac, and Linux. At time of writing, Linux includes two different download types: .deb, and .bin, but more may be added as there is demand.

Note	You can also use the Github Action to add your installers as artifacts on your app’s release page.

The Installer

The installer that is downloaded from the download page will prompt the user to select relevant installation options, such as whether to add a link in the Dock (Mac only), or the Start Menu (Windows Only), and whether to enable auto-update (default "On").

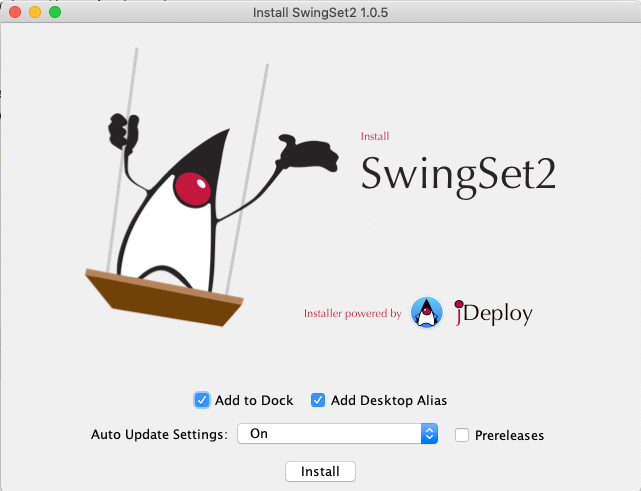

Figure 3. SwingSet2 Installer on Mac

After selecting the desired options, the user can press the Install button, which will trigger the installation of your app. This will only take a second, and, when complete, the user will be prompted with a dialog as follows:

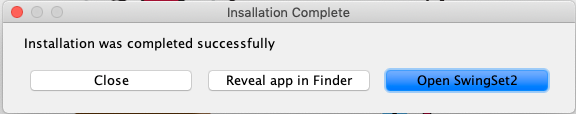

Figure 4. Dialog shown after successful installation.

In this example, clicking on the "Open SwingSet2", will open the app as shown below:

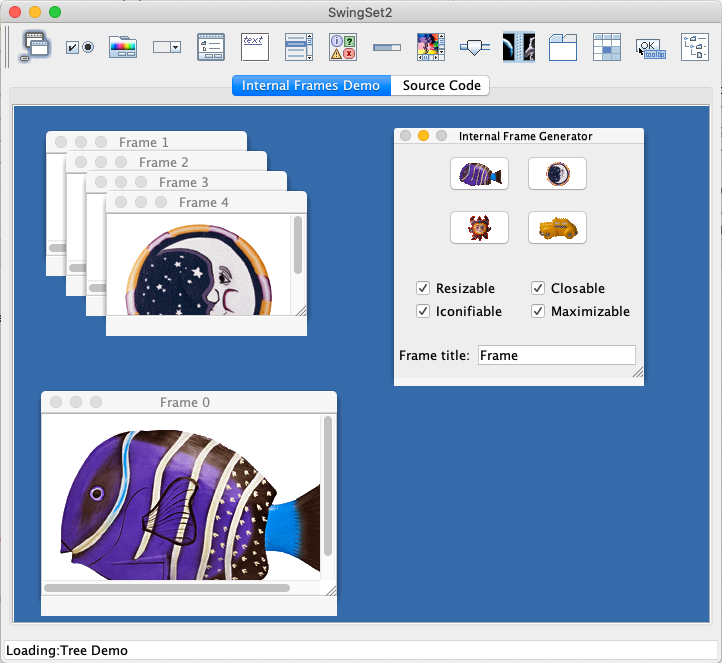

Figure 5. The SwingSet2 Demo application, running on Mac OS

Mac Codesigning and Notarization

When you deploy your app with jDeploy, you don’t need to sign or notarize it as you normally would when deploying a Mac application. jDeploy handles all of this so you don’t need to worry about it. You don’t require any Apple developer certificates; nor do you require an Apple developer account. Mac users running the latest versions of MacOS will be able to download and install your app, by simply downloading it from the jDeploy download page, and running the installer.

If, however, you do have an Apple Developer account, and want to sign and notarize your app, you can do this as well, via a convenient Github action.

Java Versions

jDeploy currently uses Azul’s OpenJDK REST API to download an appropriate JRE, or JDK on demand. You can specify which version of Java your app requires in your jDeploy config file. You can also specify whether your app requires a full JDK, or JavaFX. Deploying JavaFX apps with jDeploy is actually quite painless - as you don’t need to bundle the JavaFX jars or modules with your distribution.

All versions of Java should work. If a new version comes out that isn’t yet in the "drop-down" list of the GUI, you can just enter the version manually in the package.json file.

GitHub Action

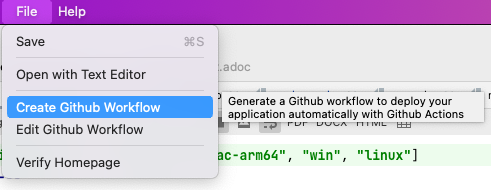

You can automate your deployments using the jDeploy Github action. Publish your app as a GitHub release, or using npm’s repository.

Publish to npm and/or GitHub

jDeploy supports hosting your releases on both GitHub (as release artifacts) or npm. When you publish a new version, your app will automatically detect this the next time it is launched, so that you can be sure that your users are always working with your latest version.

Important

Publishing the app to npm requires an NPM account. This takes a few seconds to set up. You can simply type npm adduser and follow the prompts. full instructions on the NPM site. If you already have an account but haven’t logged in on the current machine you would use npm login to login and store the credentials locally.

Git Branch Synchronization

The jDeploy GitHub action will allow you to publish native apps that stay in-sync with changes in a particular branch of your repository. When you commit changes to that branch, the app will automatically receive the update the next time it is launched. This all happens through the magic of Github actions.

Getting Started

Installation

Download and install the jDeploy desktop application for your platform. macOS, Windows, and Linux are supported.

Main Menu

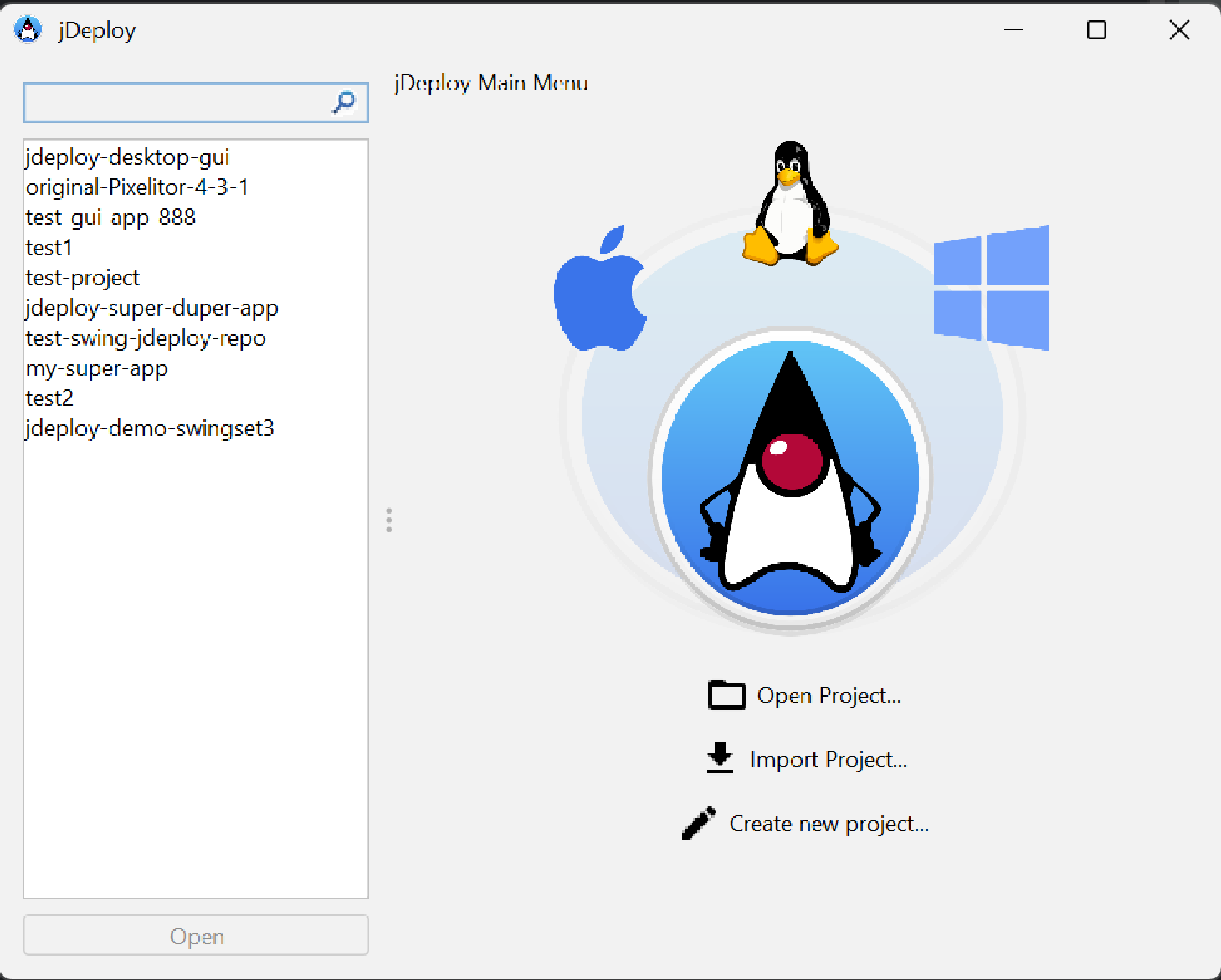

The jDeploy main menu, shown below, provides 3 main options:

Open Project - Use this if you have already set up your application with jDeploy.
Import Project - Use this if you have an jar file that you would like to deploy.
Create New Project - Use this if you would like to create a new project from scratch.

Import Project: Convert your existing jar file to a native application

If you already have a jar file (or a project that produces an executable jar file), you should use the "Import Project" option in the main menu to configure jDeploy to deploy your jar file as a native application.

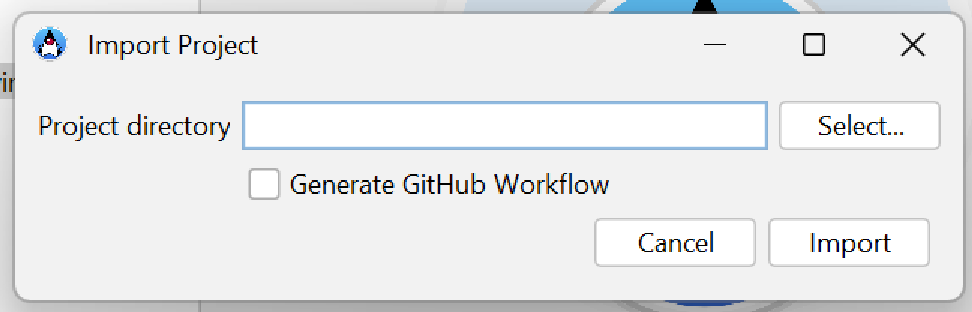

Either enter the path to your project’s directory in the provided text field, or press "Select…" to select it from a file chooser dialog.

Tip	Generally, it is best to select the directory of your project, which is the one containing your `pom.xml` file, or your `build.gradle` file.

If you intend to use GitHub actions to automatically deploy your application in response to commit and tag events, then you can check the "Generate GitHub Workflow" checkbox. This will generate a basic workflow in the .github/workflows directory.

Once you have selected your project directory, press "Import"

Note	Creating a jdeploy project will generate a file named `package.json` in your project’s directory. This file will be used to store the configuration for deploying your application.

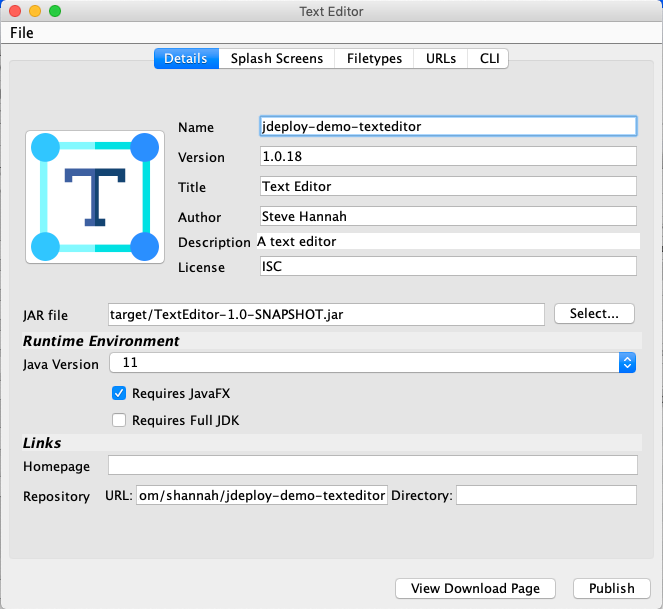

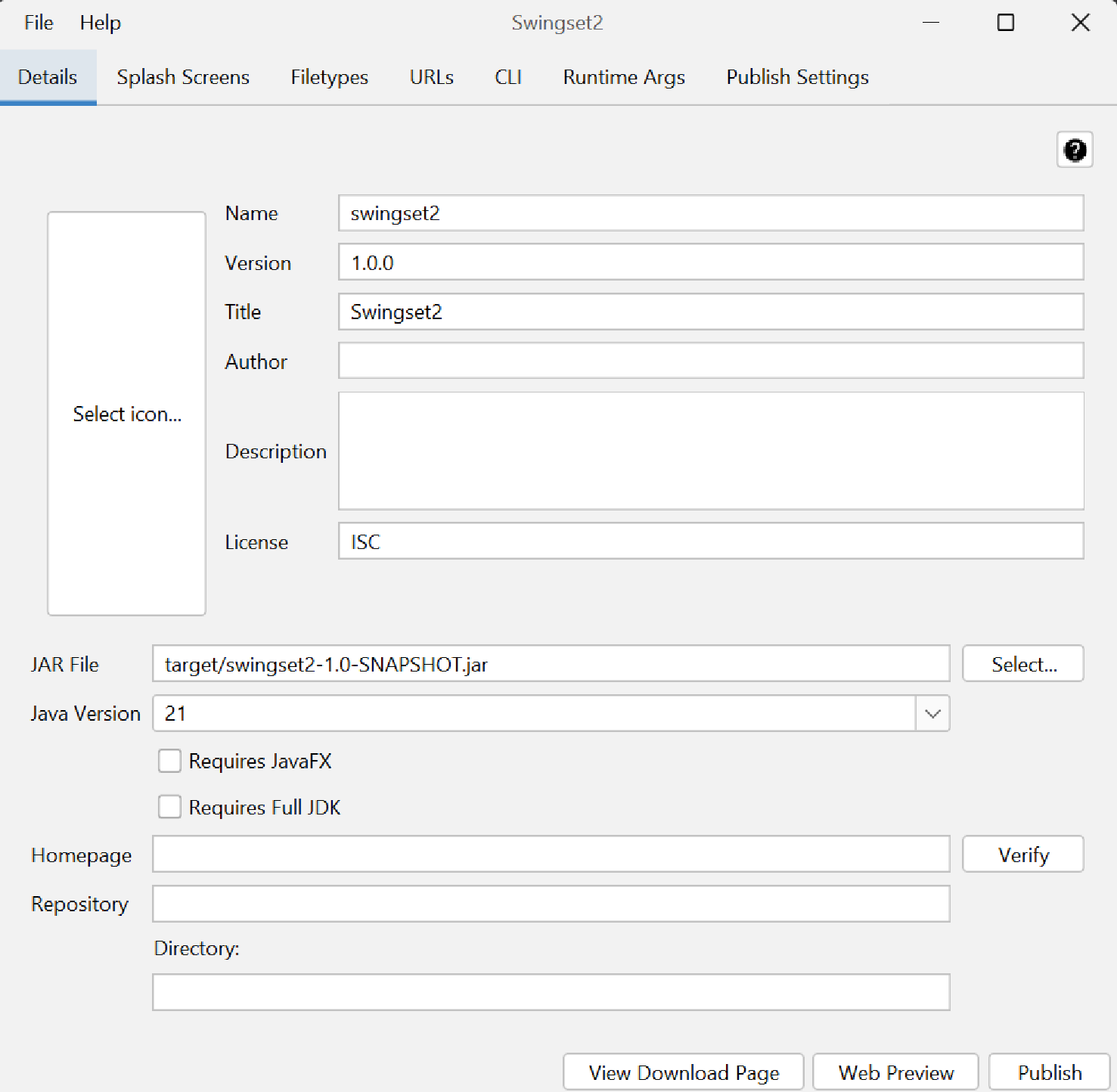

This should open the project editor dialog, as shown below:

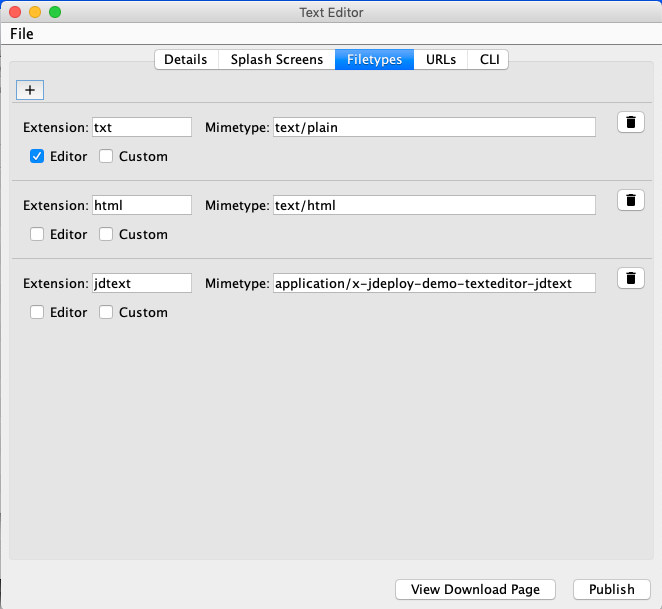

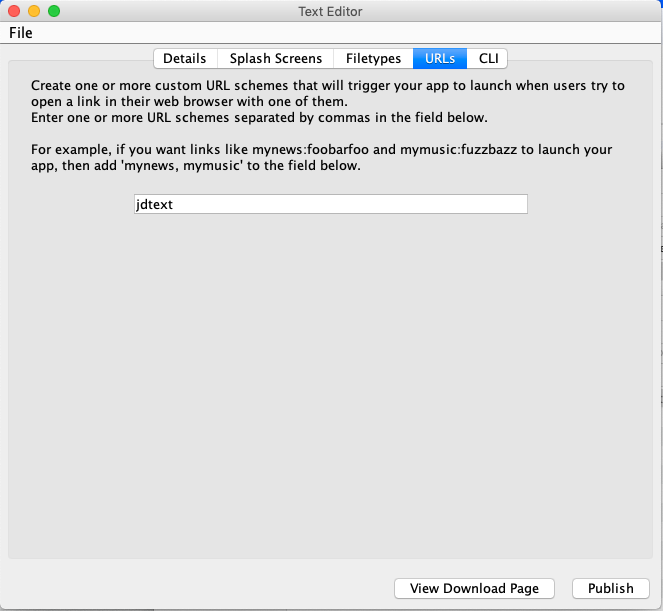

This dialog allows you to configure your desktop application. You can configure such things as: . App icon . Installer splash screen . Java version . File and URL associations . Display name . Publish targets

See [project-editor] for more information about the fields and options available in the project editor.

jDeploy does its best to find your app’s main jar file. You should see the path (relative to project root) in the JAR File field. If this is incorrect, or empty, the first thing you’ll want to do is to correct this. Press the "Select…" button to select the correct jar file.

Tip	Make sure that you have built your project so that there is a jar file to find!

The name and title fields will also be populated with default values, based on the name of your Jar file. Inspect these and change as desired. The critical fields, for publishing your application, are the Name, Version, Title, and Author fields.

The Name field should be your globally unique project name. If you are publishing to npm, for example, this will be the name of your npm package.

The Title field is the human-readable title of your application. This is what will be displayed in the application menu, and in the installer.

Note

Importing a project will create a package.json file in your project’s directory. This file will be used to store the configuration for deploying your application. You’ll also notice a .jdeploy directory, which is used to store metadata used by the jDeploy desktop application. Additionally, if you selected the "Generate GitHub Workflow" option, you’ll see a .github/workflows directory with a workflow file named jdeploy.yml that will be used to deploy your application to GitHub releases.

Publishing your application

Currently (as of jDeploy 5.0.0), jDeploy supports publishing to the following platforms:

GitHub Releases
npm

To publish your application, you’ll need to configure the Publish Targets section of the project editor dialog. By default, you’ll find that npm is selected as a publish target. If you don’t want to publish to npm, you can uncheck this option.

Generating an npm token

For the purposes of this "Getting started" tutorial, we are going to publish to npm. To do this, you’ll need to have an npm account, and you’ll need to generate a token that you can use to authenticate with npm. You can generate a token by visiting the following URL:

https://www.npmjs.com/settings/your-username/tokens

Replace your-username with your npm username.

Click on the "Generate Token" button, to create a new token. You can either choose a granular access token or a class token. Either will work, as long as it has publish permissions.

Copy this token into a safe place. You’ll need it in the next step.

Publishing to npm

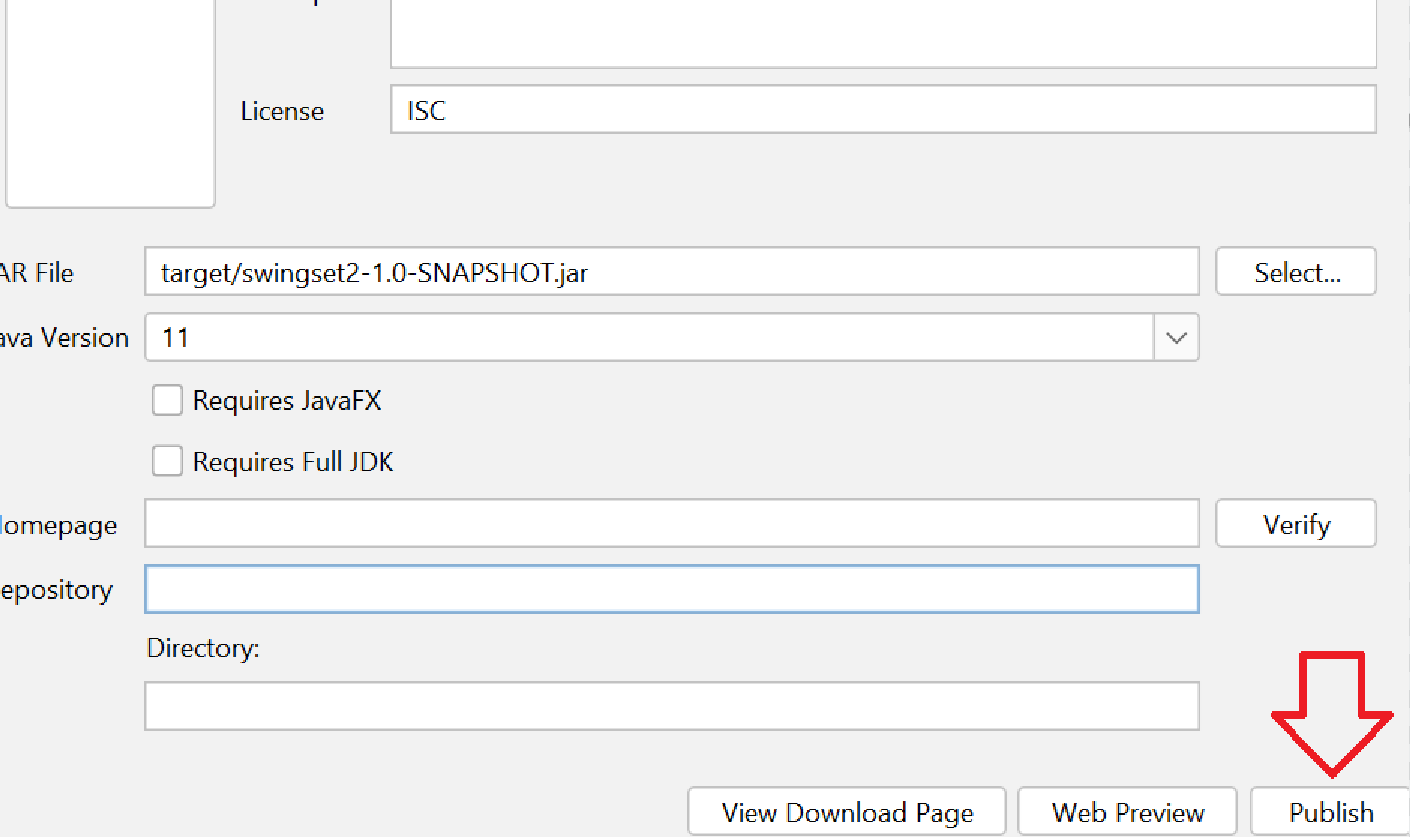

Now, back in the jDeploy project editor for your application, press the "Publish" button in the lower right of the dialog.

Important

Before publishing, you should save any changes you’ve made to the configuration by selecting "File" > "Save" from the menu, or simply pressing Ctrl+S (or Cmd+S on macOS).

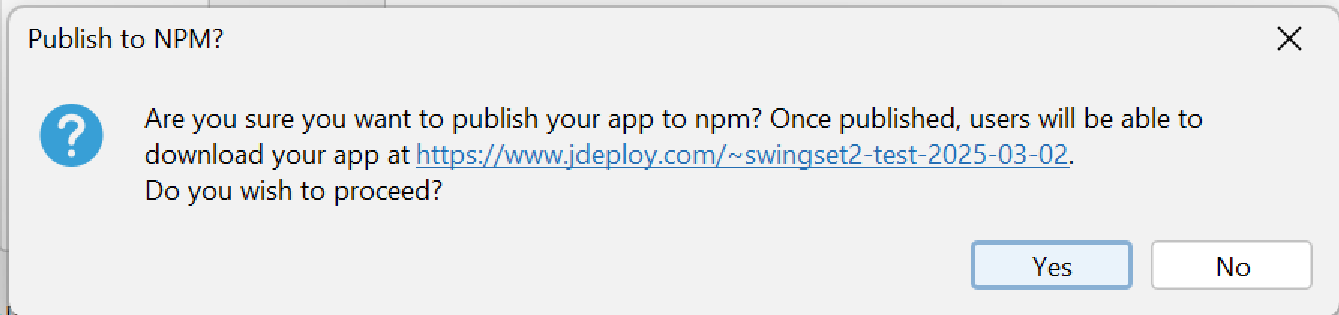

You will be prompted to confirm that you want to publish your application, as shown below:

Click "Yes" to proceed.

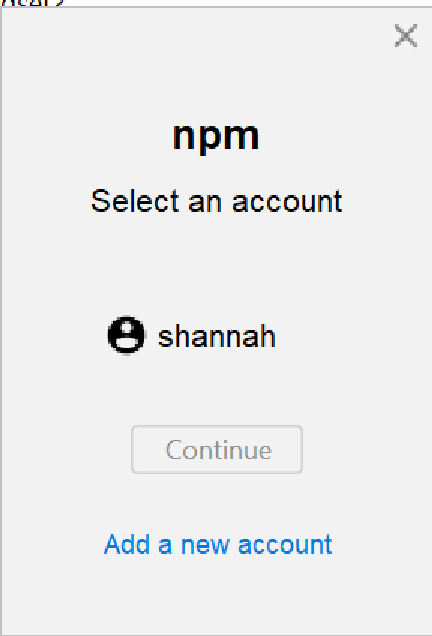

Next, you’ll be asked to select the npm account you wish to use to publish your application. If you haven’t already configured an npm account, you can do so by pressing the "Add Account" button.

Since this is our first time using jDeploy, you’ll need to add an account.

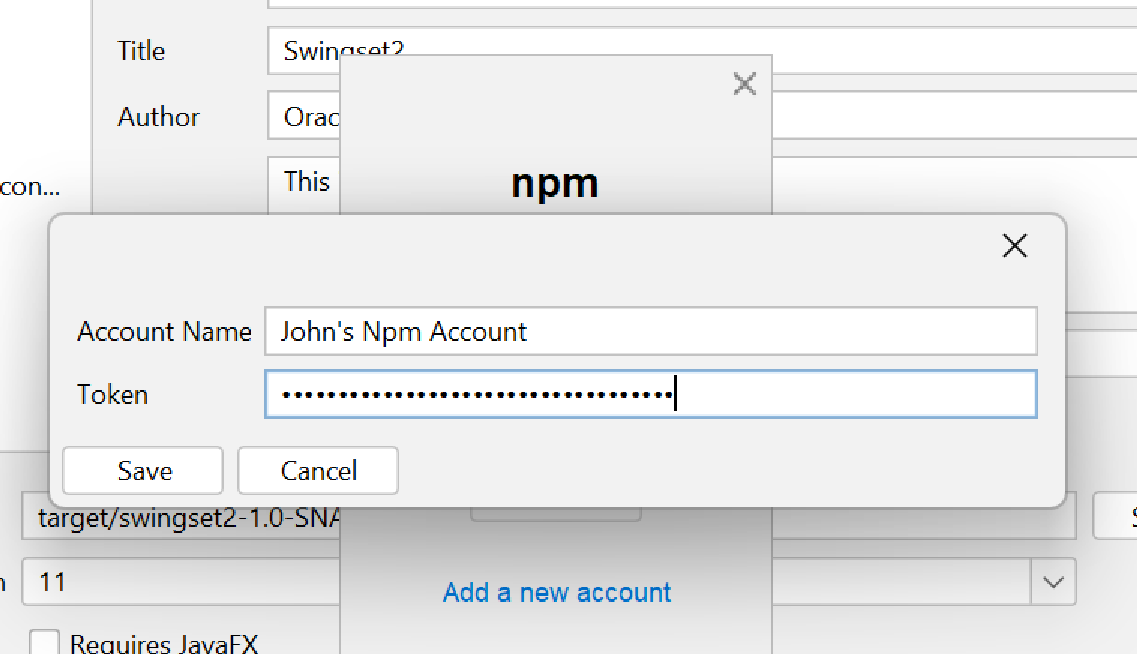

The account name field name be any identifier you choose. It doesn’t need to match your npm username. It is just for you to identify the account.

The Token field is where you’ll paste the token that you generated in the previous step.

Note	The token will be stored in your system’s keychain, so you won’t need to enter it again in the future.

Press "Save", to return to the account selection dialog. Then press "Continue" to proceed with publishing your application.

Depending on your npm account settings, you might be prompted to enter a one-time password (OTP) to authenticate. If so, you’ll see a dialog like the one shown below:

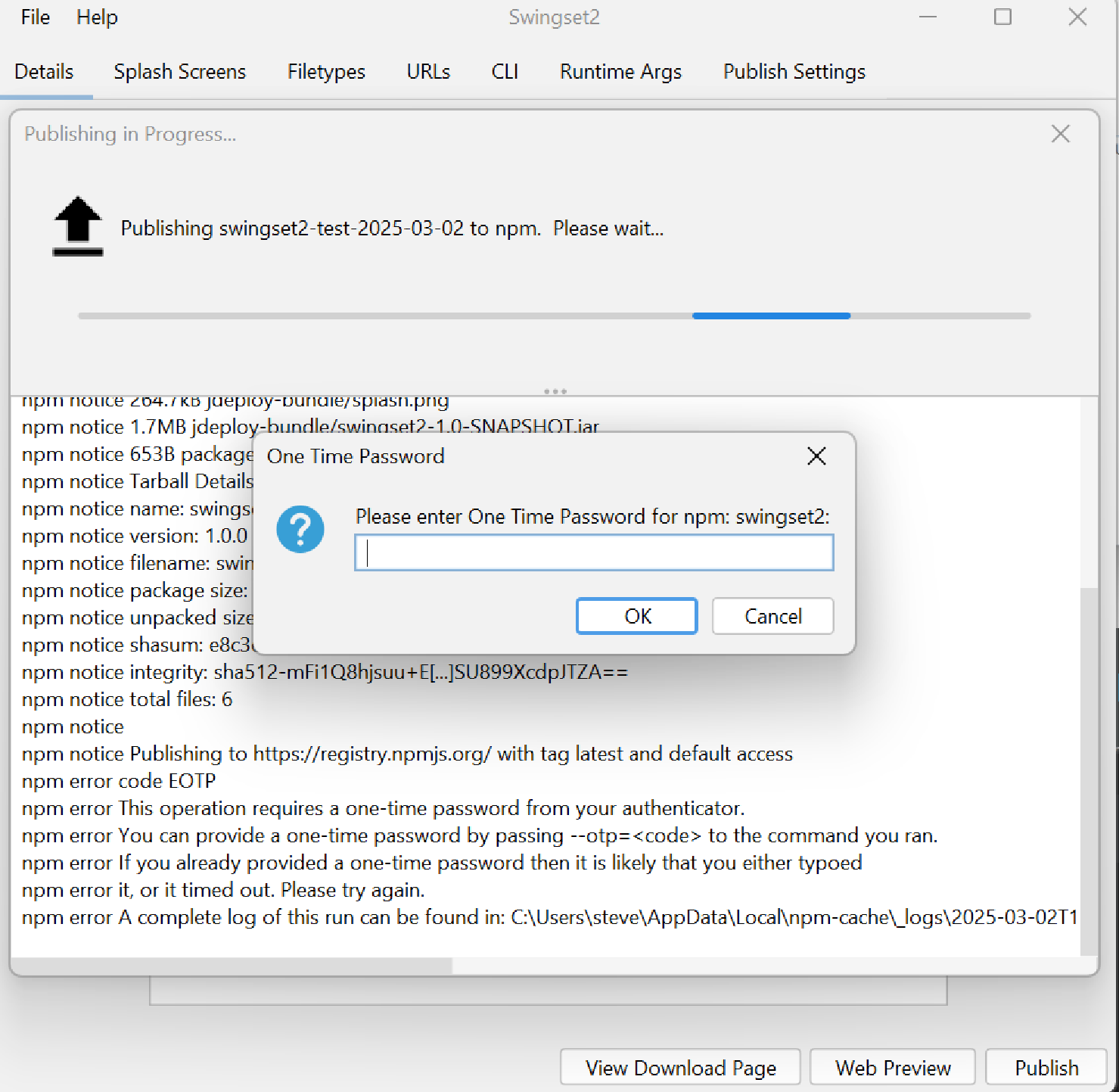

If you have set up your npm account for 2-factor authentication, then you can simply enter the code from your authenticator app. If you haven’t set up 2-factor authentication, then you have two options:

Set up 2-factor authentication for your npm account.
Adjust your account settings to allow publishing without 2-factor authentication.

See the npm documentation for more information on how to set up 2-factor authentication for your npm account.

Once you have entered the OTP, or if you don’t need to enter one, the publishing process will continue.

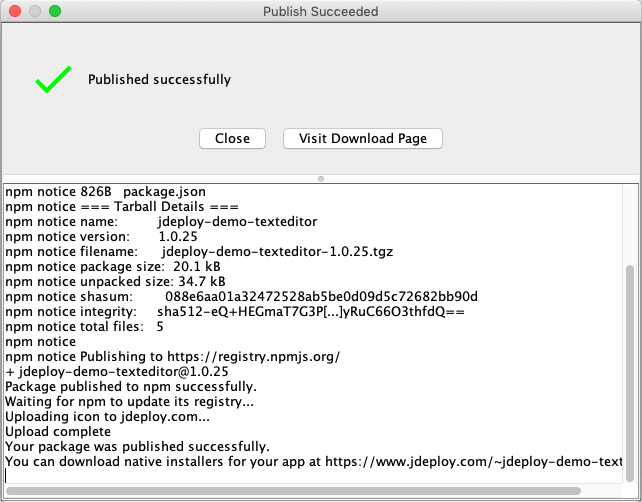

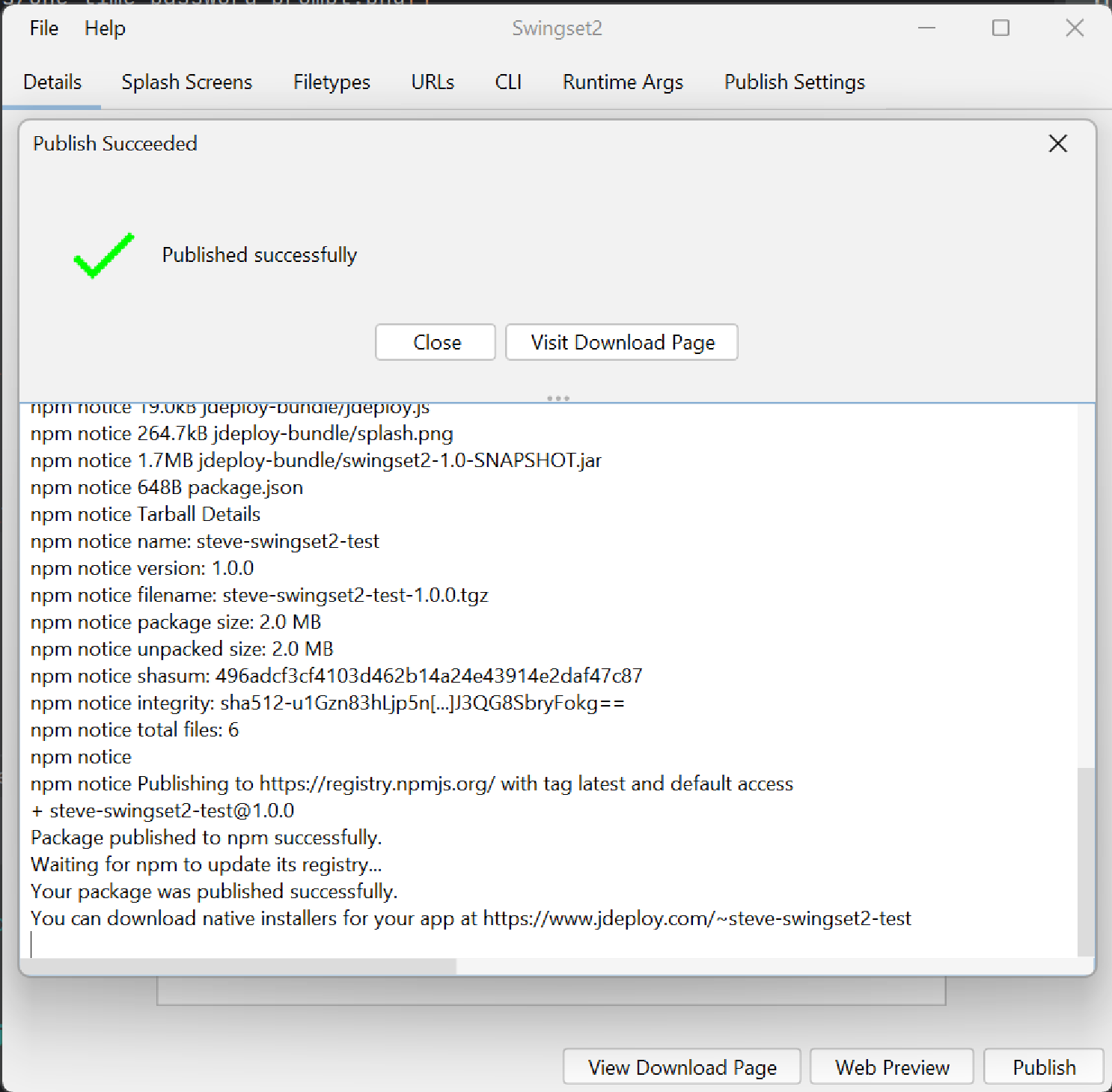

If all goes well, you should see a dialog like the one shown below:

You can click on "View Download Page" to download your application. The URL for this download page will remain constant for all future releases of your application, so you can link to it from your website, or share it with your users.

Note	The download page is hosted on jdeploy.com, and provides downloads for your app’s installer, however, it doesn’t actually host your app. The installer that users download from this page will download your app from npm’s repository at install time.

Installing your application

To install your application, simply download the installer for your platform from the download page, and run it. The installer will guide you through the installation process.

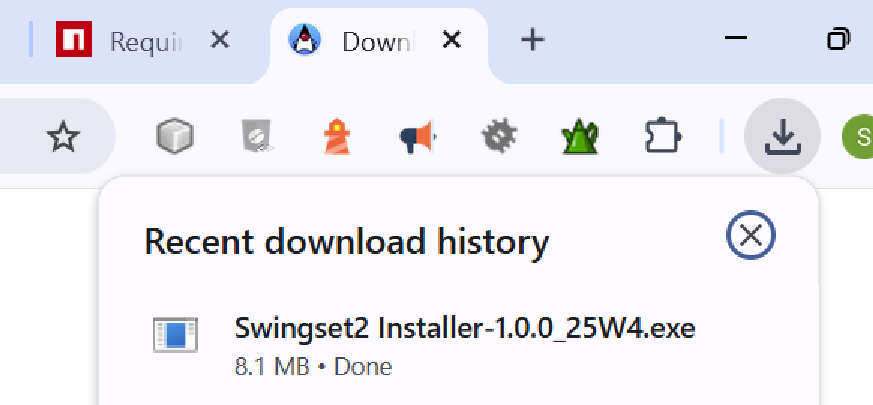

E.g. On windows, it will download the installer as an exe file. You can run this directly from your browser’s downloads:

On macOS, it will download a .tar.gz file with an .app file inside. You can extract this file and run the .app file to install your application.

Tip	jDeploy also supports DMG file distribution for macOS, but this requires some configuration, as well as set up for code signing. This is not covered in this "Getting Started" tutorial.

Linux provides 3 different options for installation:

.deb package
.bin installer
Command-line installation snippet that you can run in your terminal.

Choose the option that is most appropriate for your system.

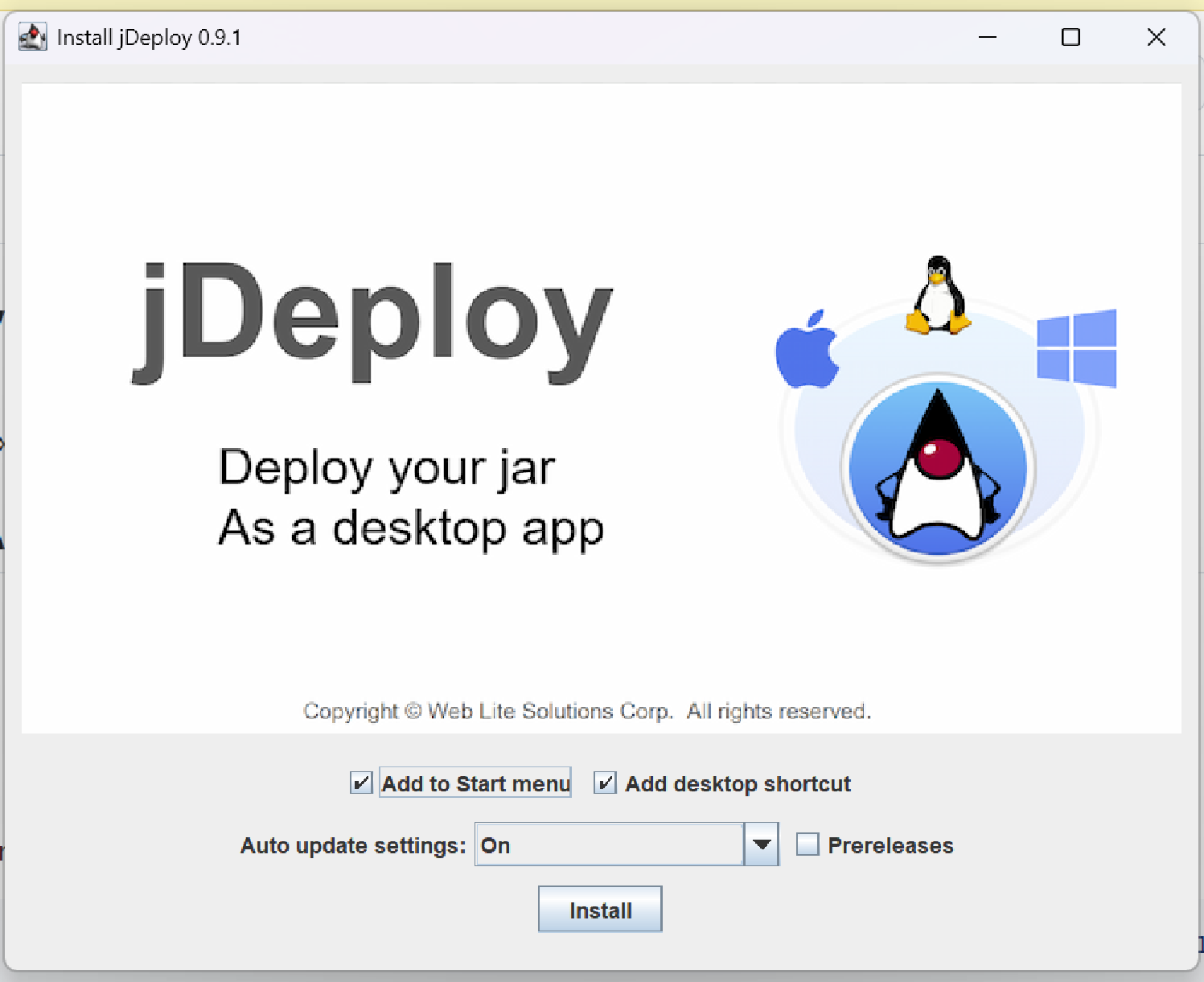

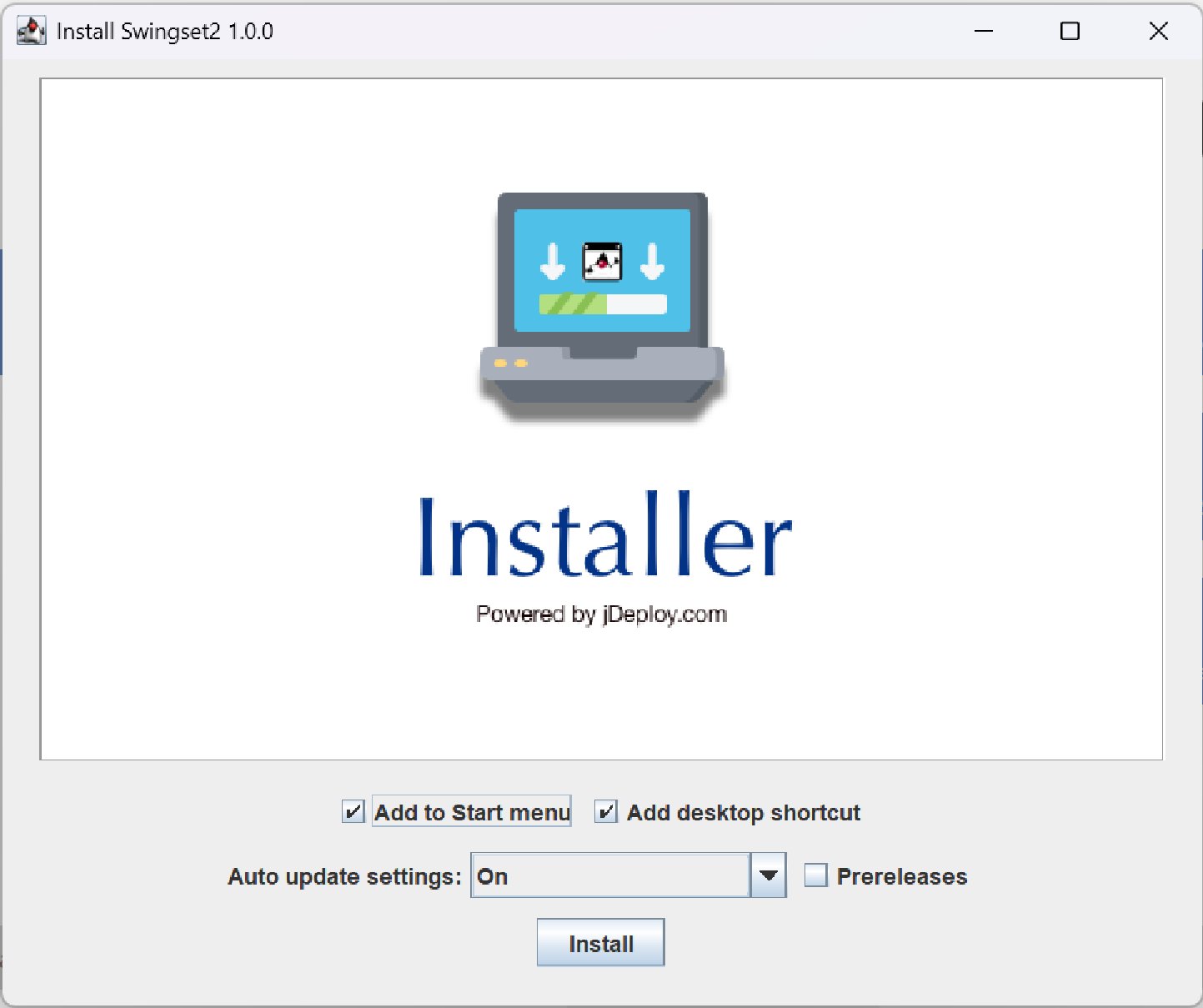

The vanilla installer UI is shown below. We’ll cover later, how you can customize this to match your app’s branding.

On Windows it provides options to add to the Start menu, as well as adding a desktop shortcut. On macOS it will provide an option to add to the Dock instead of the start menu.

Users can select the auto-update settings that they prefer. Recommended to leave it "On" so that the application will automatically download updates for your application when they are available.

Click the "Install" button to proceed with the installation.

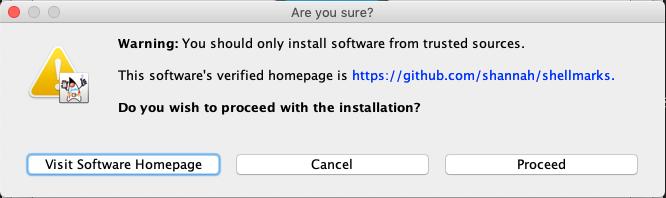

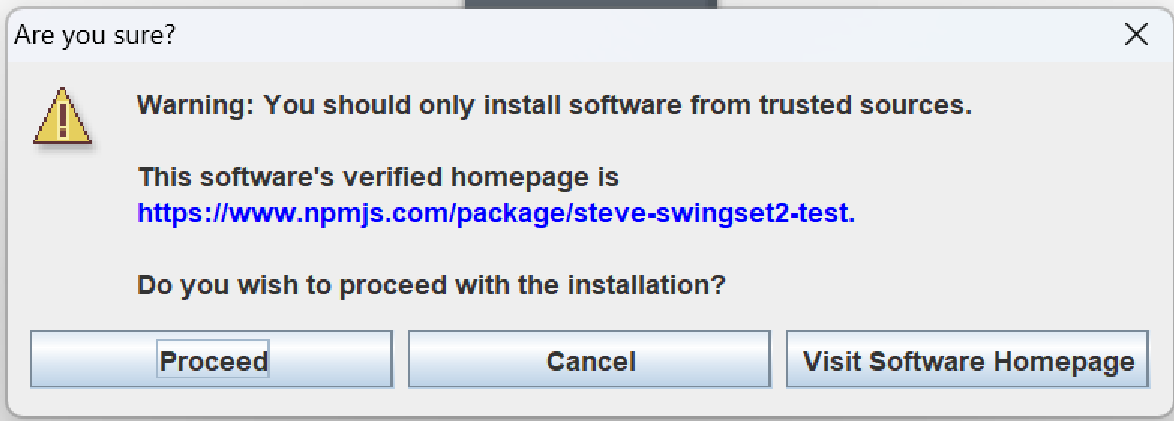

This will prompt you with a confirmation dialog as shown below:

Click "Yes" to proceed with the installation.

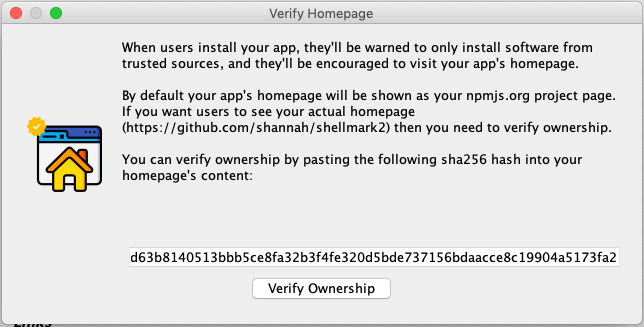

Tip	By default this says that the application’s home page is at npmjs.com. If you published to GitHub releases, it would, instead, show the URL to your GitHub repository. Later we’ll learn how to change this to point to your own website.

Important

This confirmation step is important to prevent malware, and provide the user with a change to verify that the software is from a trusted source. The jDeploy installer is signed using the jDeploy’s code signing certificate, so it should be trusted by most systems so that you don’t need to jump through the hoops of code-signing yourself. So the installer is considered trusted, but the user must still confirm that they trust the software that the installer is installing.

Once you have confirmed, the installation will proceed.

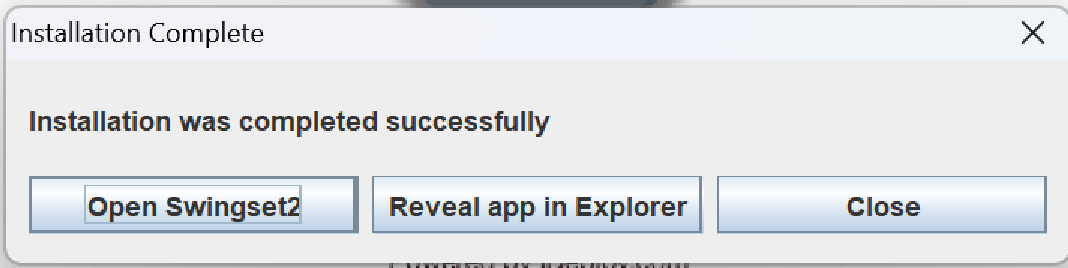

If all goes well, you should see a dialog like the one shown below:

Click "Open <Your application name>" to launch your application.

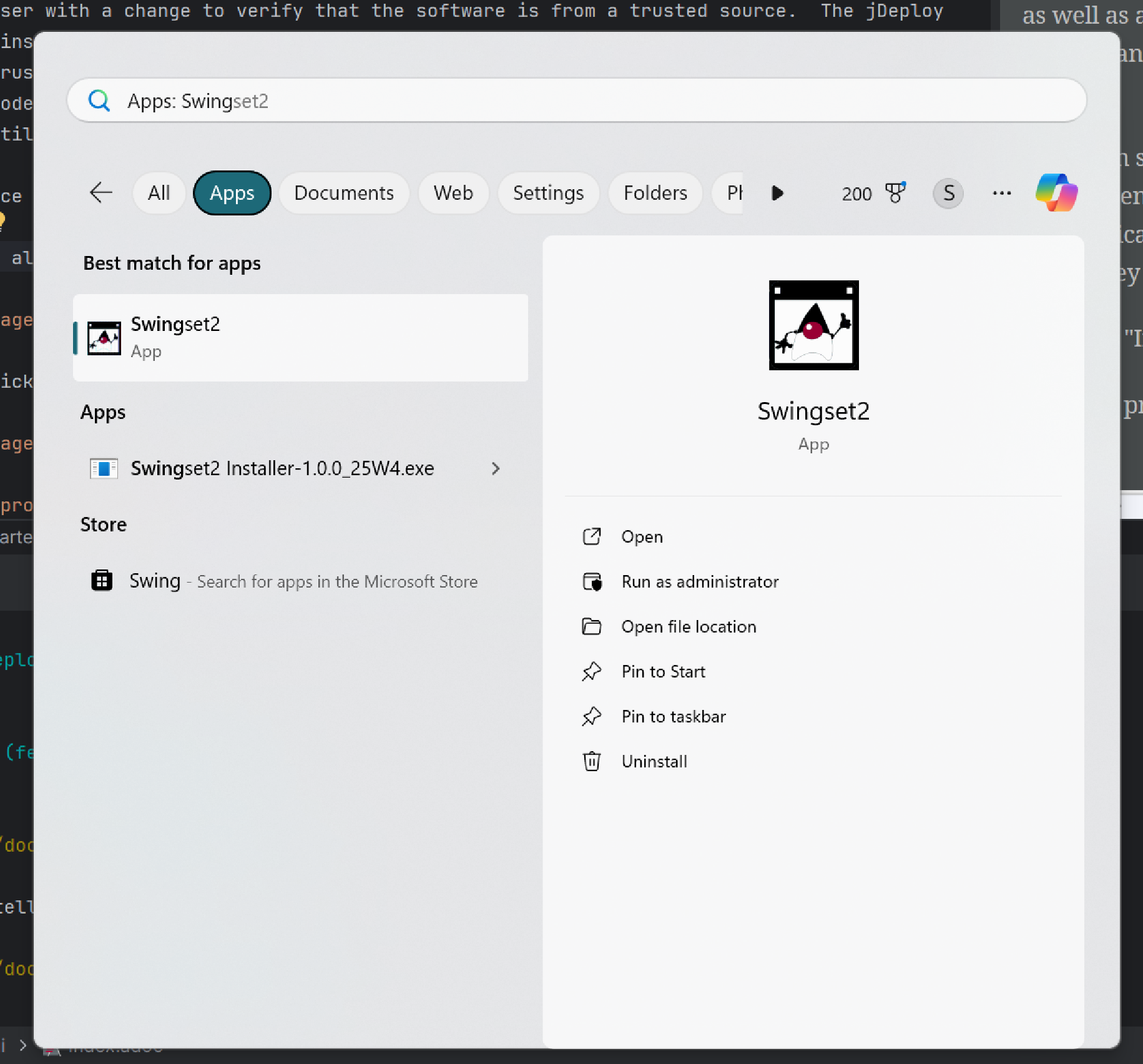

Notice, that the application should also be available via the start menu.

Publishing to GitHub Releases

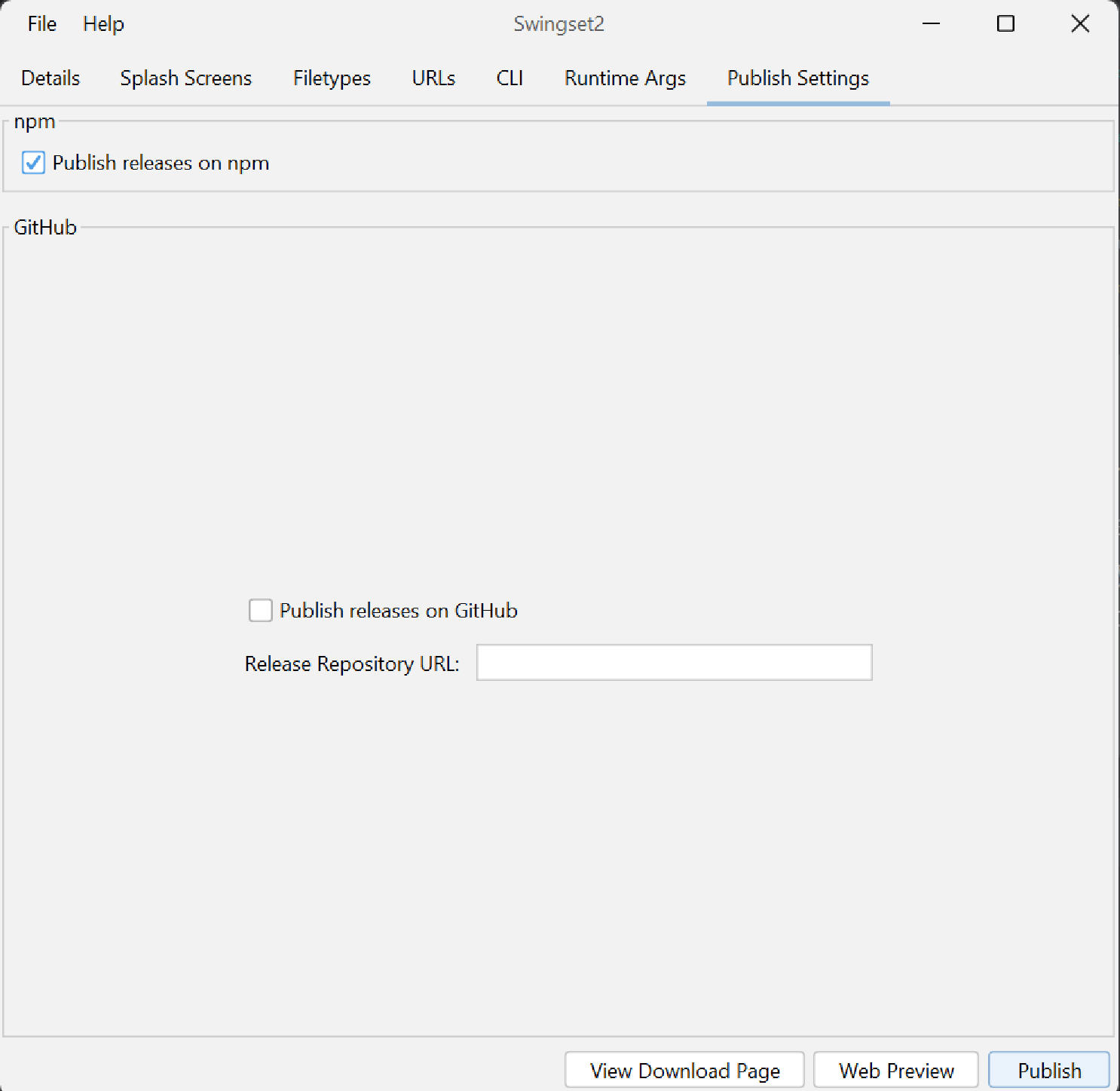

If you would like to publish your application to GitHub releases, instead of, or in addition to, npm, you can do so by configuring the Publish Settings tab of the project editor dialog.

Select the "Publish releases to GitHub" checkbox to enable this option. You should also provide the URL to the GitHub repository where you would like to publish your releases.

Important

This GitHub repository needs to be public so that the jDeploy installer is able to download updates from it. You may use a different repository than where your application sources are stored, if you want to keep your sources private. This repository need just be used to publish releases.

Generating a GitHub Personal Access Token

To publish to GitHub releases, you’ll need to generate a personal access token. See the GitHub documentation for details on creating your token. You can use a classic token or a fine-grained token, as long as it has permission to publish releases.

Publishing to GitHub

Once you have configured your GitHub repository and generated your personal access token, you can press the "Publish" button in the project editor dialog to publish your application.

In the project editor, click on the "Publish" button in the lower right of the dialog.

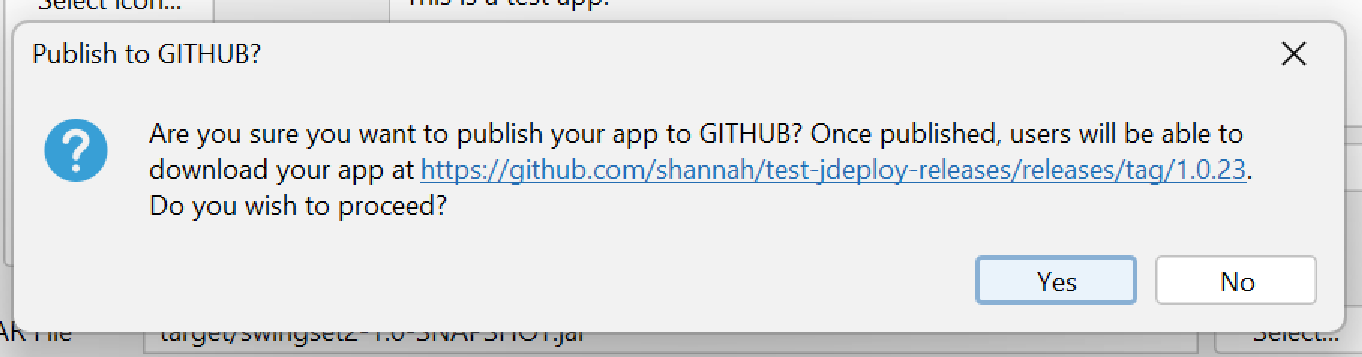

This will prompt you to confirm that you want to publish your application.

Click "Yes" to proceed.

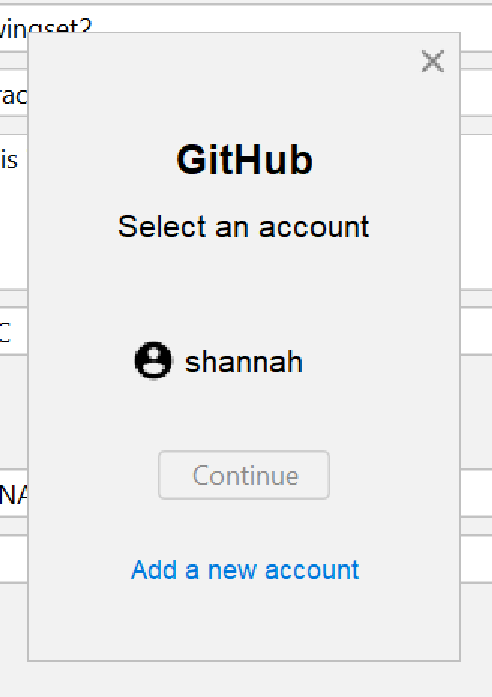

Next, you’ll be asked to select the GitHub account you wish to use to publish your application. If you haven’t already configured a GitHub account, you can do so by pressing the "Add Account" button.

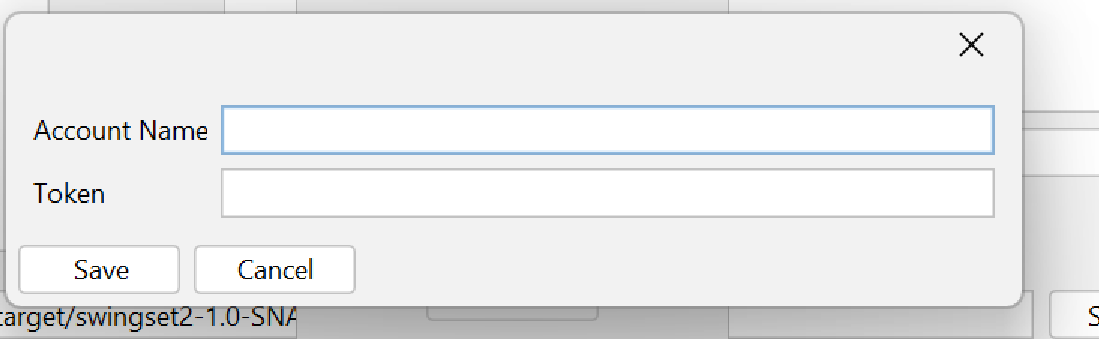

If this is your first time publishing, you’ll need to add an account, by pressing "Add a new account". This will open a dialog where you can enter your GitHub username and personal access token.

You can enter anything you like into the "Account Name" field. This is just for you to identify the account. The "Token" field is where you’ll paste the personal access token that you generated in the previous step.

Press "Save" to save the account, and then press "Continue" to proceed with publishing your application.

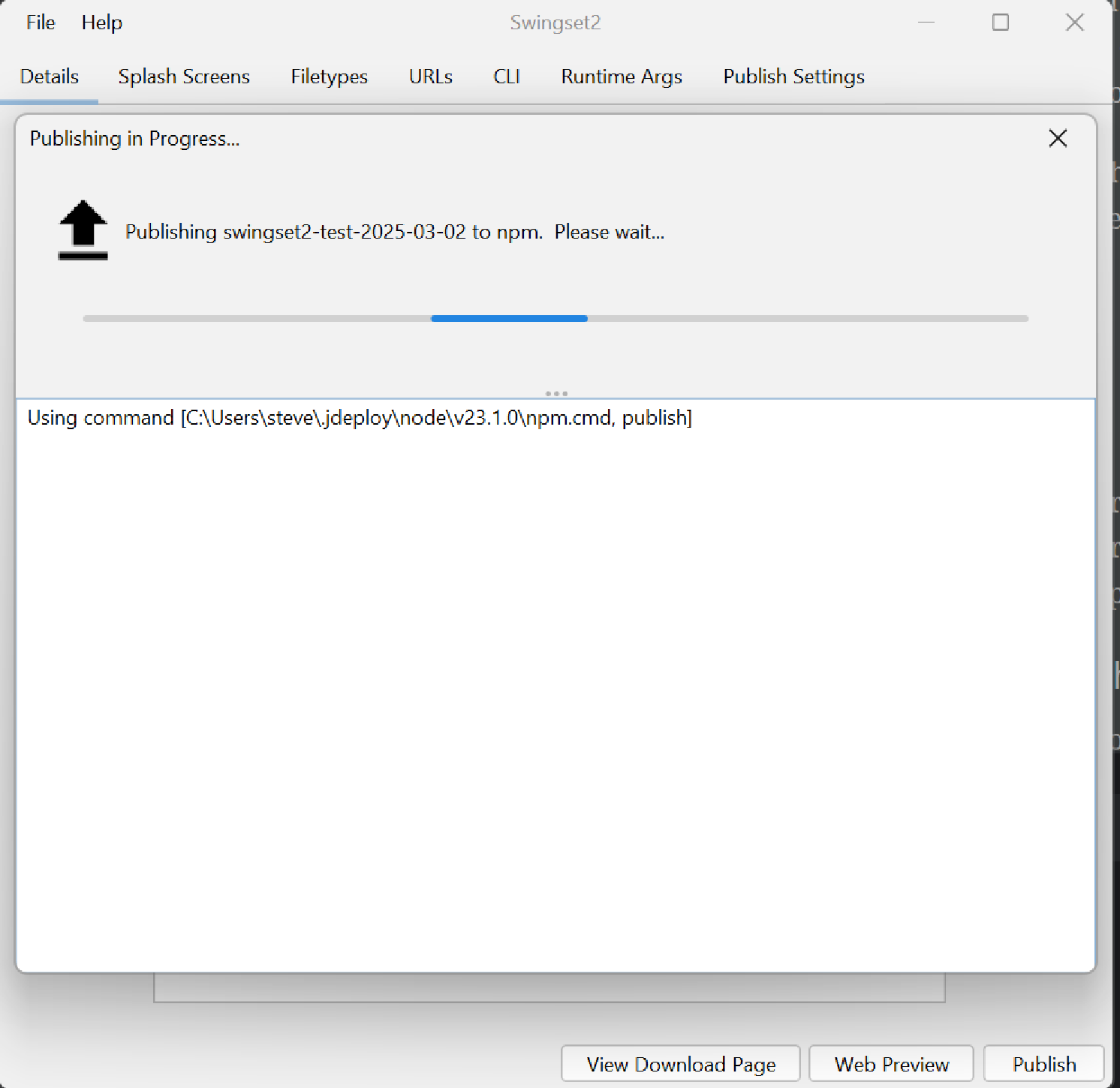

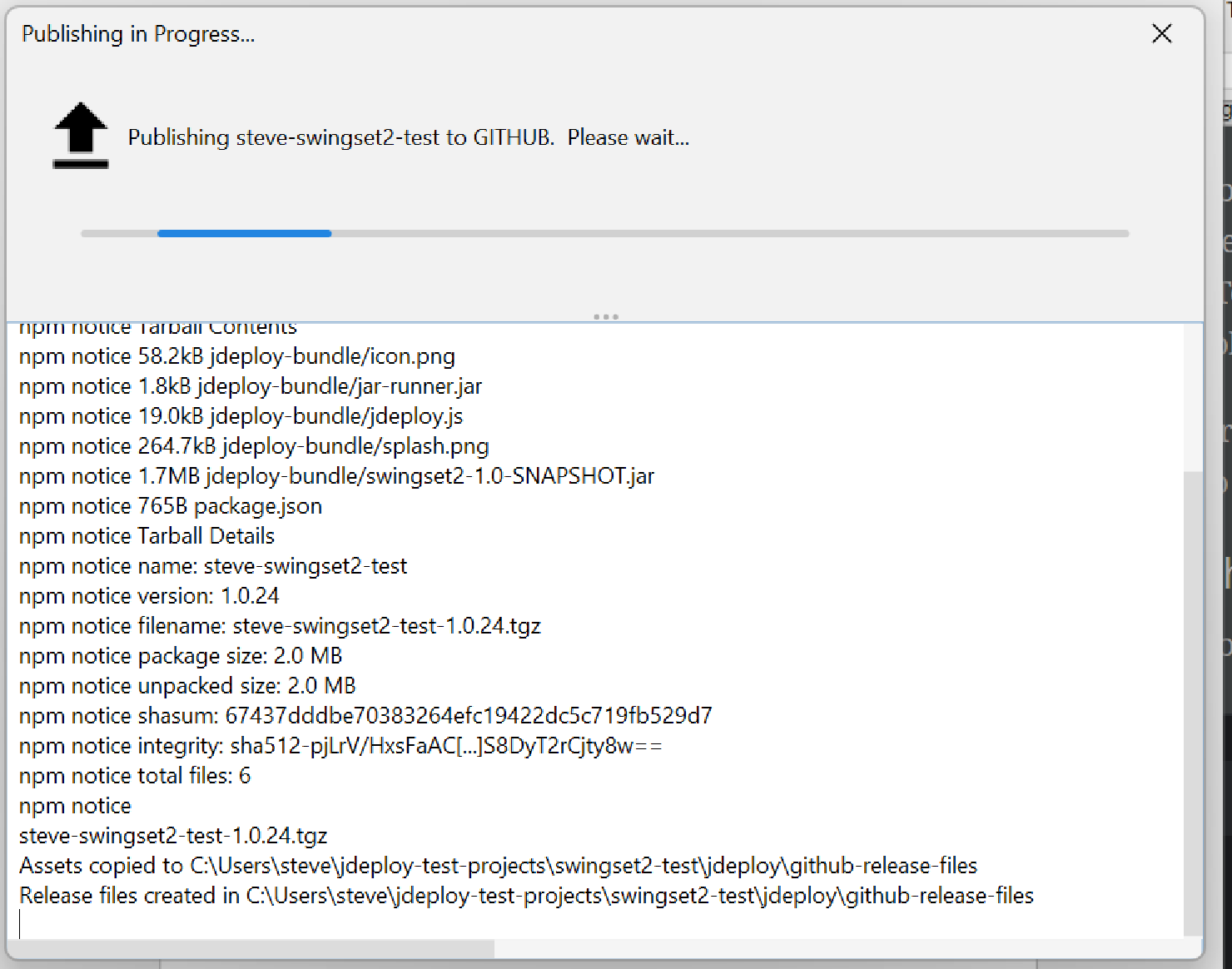

While publishing, you’ll see a progress dialog like the one shown below:

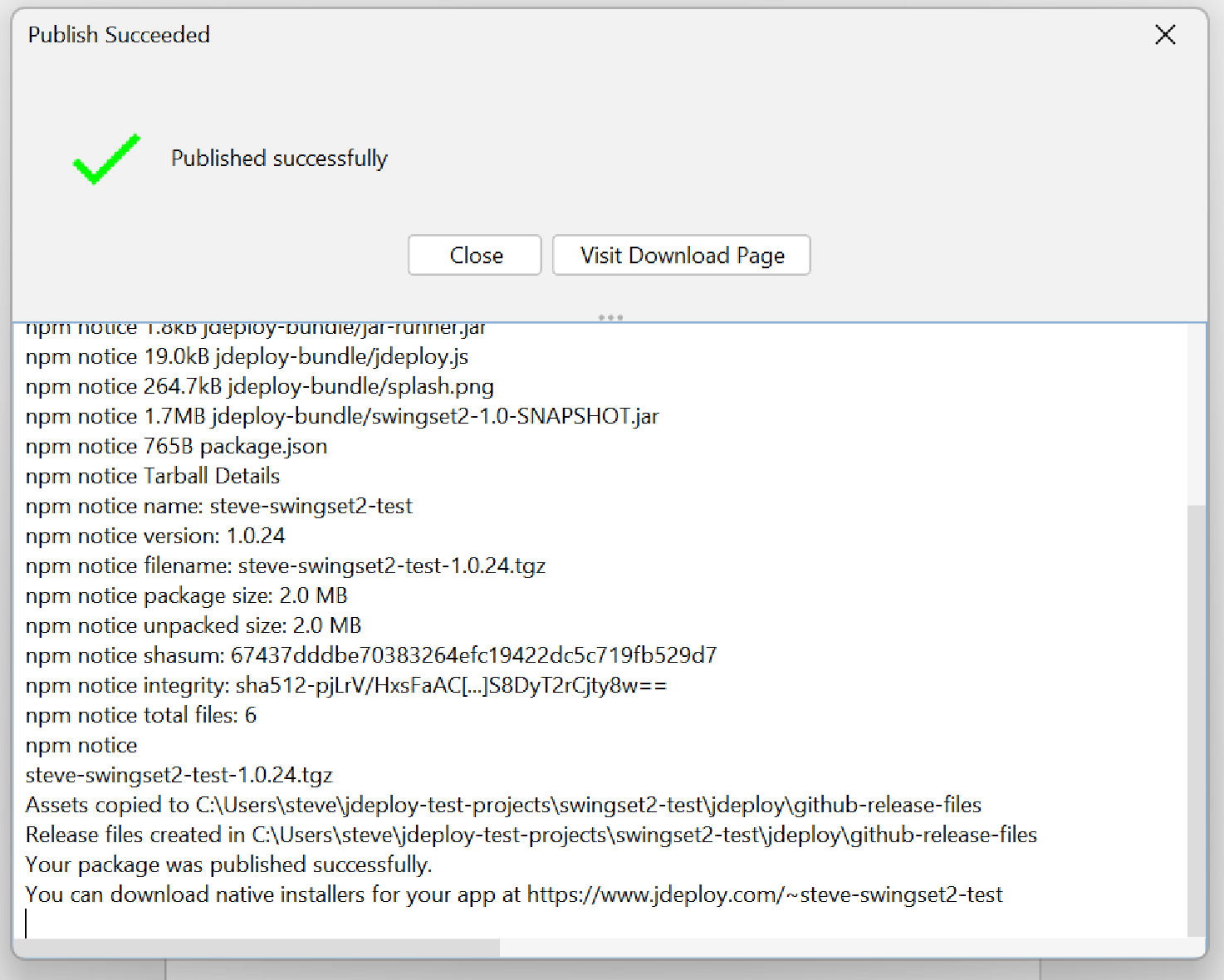

If all goes well, you should see a dialog like the one shown below:

You can click on "View Download Page" to view the download page for your application. This page will provide a link to download the installer for your application.

Create New Project

If you are starting from scratch, you can use the "Create New Project" option in the main menu to create a new project based on a selection of templates. Some of the templates available include:

swing - A Swing application
javafx - A JavaFX application
codenameone - A Codename One application
fxgl- An FXGL application

All templates currently use Maven as the build system.

Most of the "Create New Project" dialog should be self-explanatory. You can select the template you want to use, and enter the name of your project. The "Group ID" and "Artifact ID" fields are used to generate the Maven coordinates for your project.

You can select either GitHub or npm as a publish target. If you select GitHub, you’ll need to provide the URL to your GitHub repository. If you select npm, you’ll need to specify the name of your npm package. These options can be configured also later in the project editor.

Press "Create Project" to create your new project. Upon completion, the project editor dialog open, allowing you to configure your application, further.

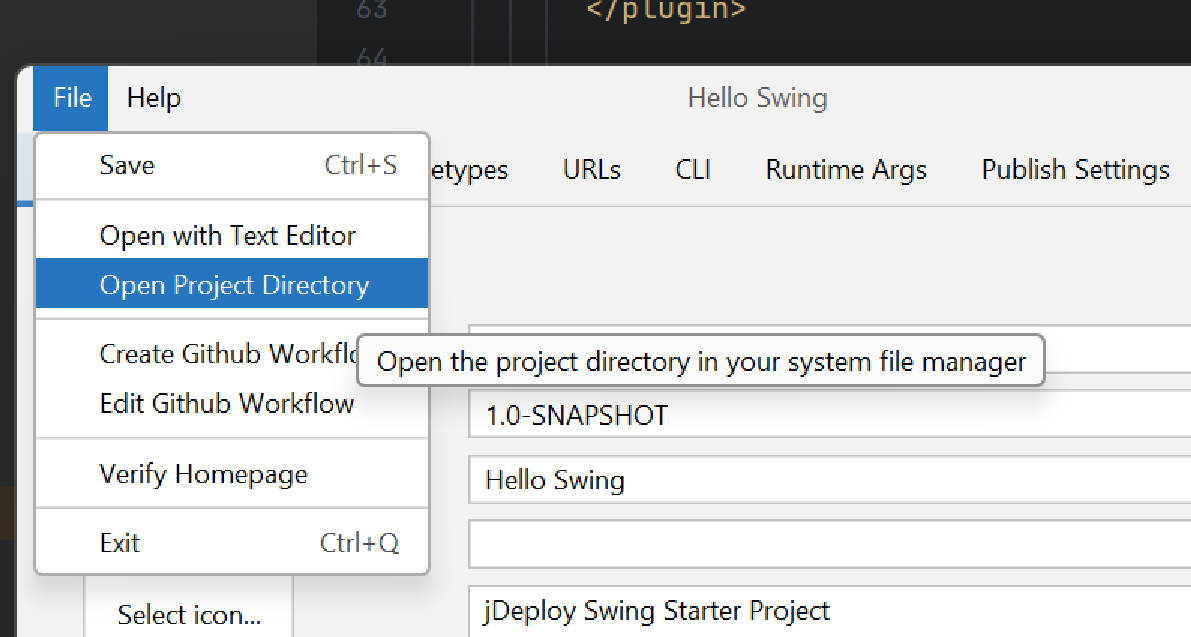

Tip	You can open the project’s directory in Finder/File explorer by selecting "File" > "Open Project Directory" from the menu.

You can open the project in your preferred IDE.

Deploy as a Web App (CheerpJ)

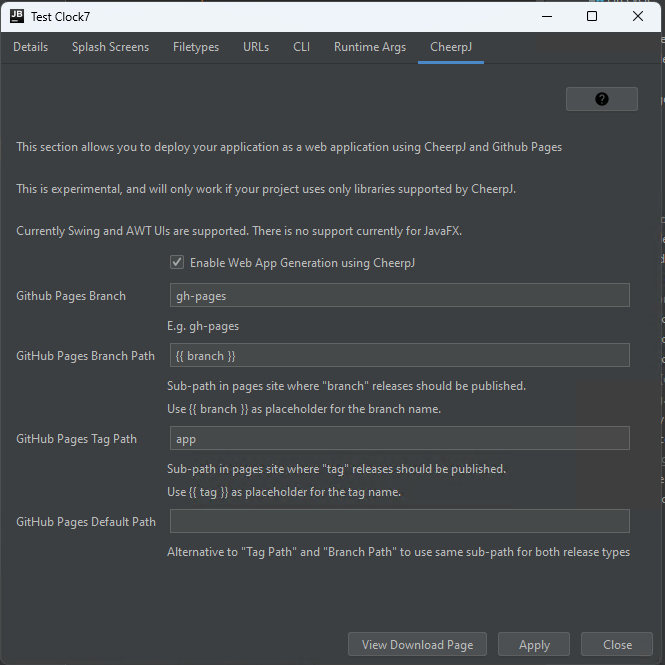

jDeploy includes support for deploying Java Swing/AWT-based applications as progressive web apps. From the CheerpJ website:

CheerpJ is a WebAssembly-based Java Virtual Machine for the browser. It has extensive compatibility with Java 8 and provides a full runtime environment1 for running Java applications, applets, libraries, and Java Web Start / JNLP applications in the browser without plugins.

This is currently experimental. Limitations include:

Only Swing/AWT UIs are supported currently. No JavaFX.
Some 3rd-party java libraries may not be supported. You can try to build and find out.

Important

Please read the CheerpJ licensing options before deploying your application, to ensure that you are fully compliant.

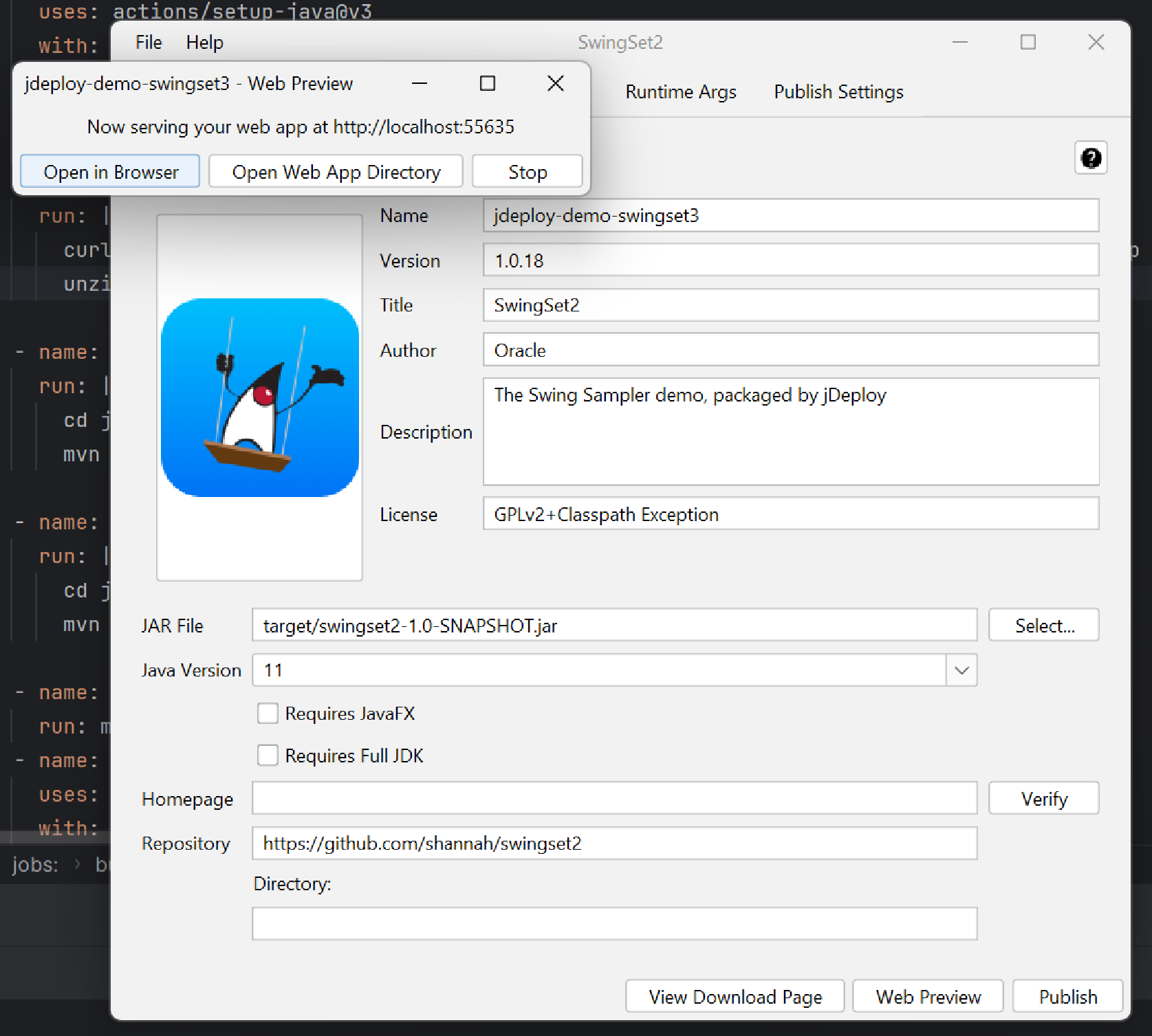

To preview your app running as a web app, you can press the "Web Preview" button in the project editor dialog. This will build your application as a web app, then open a dialog for you to preview it in your browser, as shown below:

You can open the web preview in your browser by pressing the "Open in Browser" button.

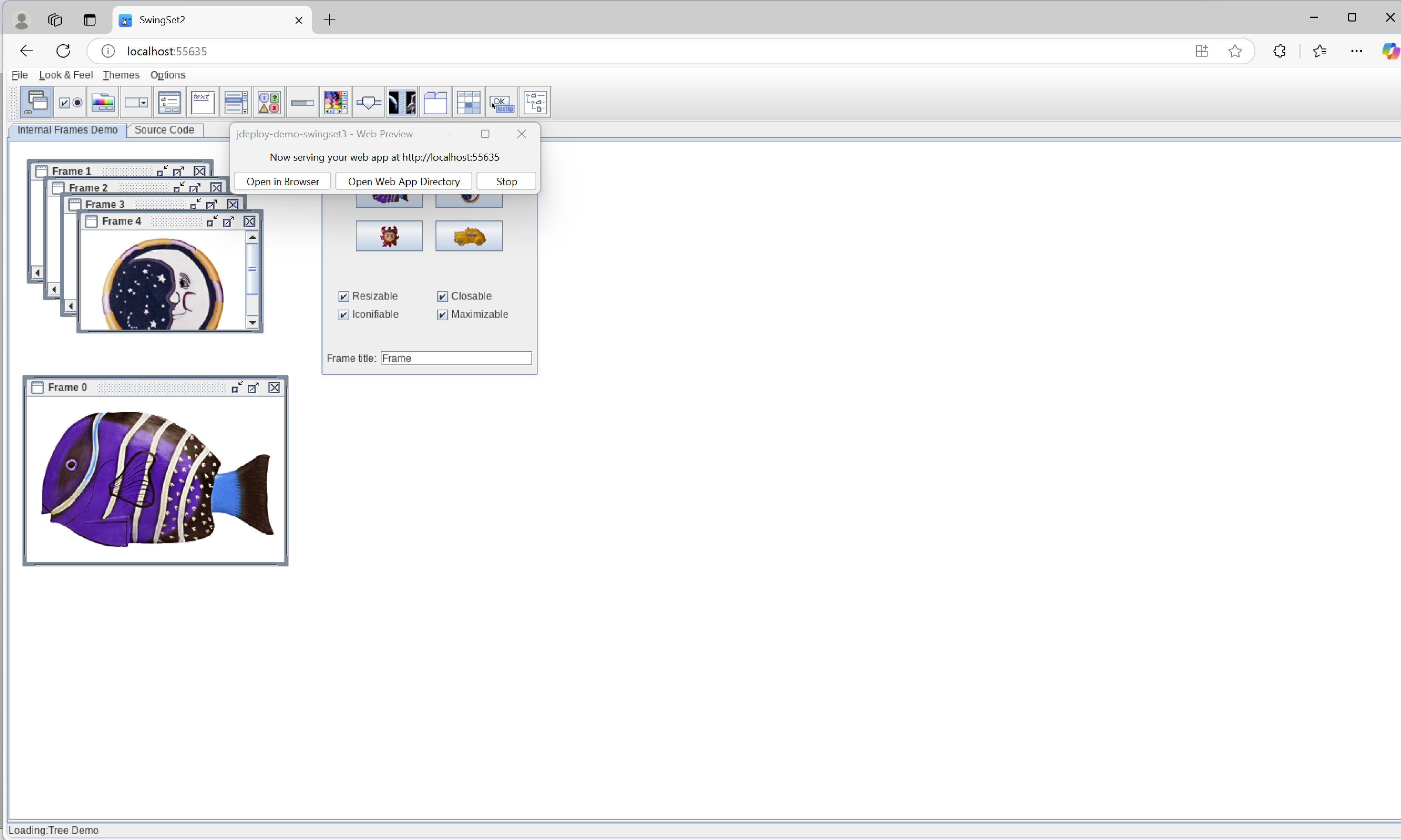

The following screenshot shows the SwingSet2 demo running as a web app in the browser:

Command-line Usage

If you eschew GUIs and prefer to work on the command-line, the following instructions are for you.

In terminal, navigate to a directory containing an executable .jar file that you would like to publish.

$ jdeploy init

This will generate a package.json file with settings to allow you to publish the app to npm.

The package.json file

After this command completes, you should open the package.json in your text editor to adjust the settings to your requirements. The following is the package.json file for the SwingSet2 app.

{
  "bin": {"swingset2": "jdeploy-bundle/jdeploy.js"},
  "author": "Oracle",
  "description": "The Swing Sampler demo, packaged by jDeploy",
  "main": "index.js",
  "preferGlobal": true,
  "repository": "https://github.com/shannah/swingset2",
  "version": "1.0.5",
  "jdeploy": {
    "jar": "target/swingset2-1.0-SNAPSHOT.jar",
    "javaVersion" : "11",
    "title" : "SwingSet2",
    "javafx" : false,
    "jdk" : false
  },
  "dependencies": {"shelljs": "^0.8.4", "njre": "^0.2.0"},
  "license": "GPLv2+Classpath Exception",
  "name": "jdeploy-demo-swingset2",
  "files": ["jdeploy-bundle"],
  "scripts": {"test": "echo \"Error: no test specified\" && exit 1"}
}

The package.json specification can be found here. The jdeploy object includes additional properties that you can use to customize how your native desktop bundle. It includes the following keys:

jar

The path (relative to the package.json file) to your executable jar file. It the jdeploy init command worked correctly, it should already point to the correct jar file. If it found the wrong file, or the name of the file changes later, you may need to adjust this value.

Type: String

javaVersion

The Java runtime version required to run your app. At time of writing the default is "11". You can also use "8", or "17" here. In theory any version that Azul's API supports can be used here.

Important

This value should not include only the major version. E.g. "11", NOT "11.0". Also, this value should be a string, not an int. I.e. "javaVersion" : "11", NOT "javaVersion" : 11.

Type: String

title

Your app’s title. This is the human-readable name of your app. It will be used on the download page, and also as the app’s file name when downloaded.

Type: String

jdk

Whether the app requires a full JDK to run. If true, then the app will be run with a JDK - not just the JRE. Unless your app actually needs a JDK (i.e. access to javac, etc…), you should keep this false as the JDK is substantially larger than the JRE.

Type: boolean

javafx

Whether your app requires JavaFX. If true, then the app will run with a JRE/JDK that includes JavaFX.

Type: boolean

Icons and Splash Images

There are three specially-named images that, if placed in the same directory as your package.json, will be used by jDeploy. They are:


An icon for your app. If you don’t include this file, it will use a generic jDeploy icon for your app.

Recommended specifications: 512x512 pixels, with transparency.

Note	If you are using JavaFX you should also add your icon to your app’s Stage using `stage.getIcons().add(…)` as there is a bug in Ubuntu that will cause the app’s icon to appear blank in the taskbar otherwise.

splash.png/splash.jpg/splash.gif

A splash image to be displayed while your app is loading.

Note	jDeploy uses the `-splash:splash.gif` CLI argument at runtime to add the splash screen. This apparently causes some issues with JavaFX. Currently, the recommendation for adding splash screens to JavaFX apps is to use a Preloader. Example here.


A splash/info screen to be displayed in the installer for your app.

Publish App to NPM

Tip	This section describes how to publish to npm, but you can alternatively publish to Github releases using the jDeploy github action.

Important

In order to publish your app with jDeploy, you need to have an npm account. For instructions on creating your free npm account see this tutorial.

You must be logged into your npm account in the command-line in order for the jdeploy publish command to work. If you already have an npm account you can login with the npm login command. See this tutorial for more details.

Once you have logged into your npm account and configured your package.json file to your liking, you can publish your app to npm with the following command:

$ jdeploy publish

If it completes successfully, you’ll be able to download your app bundles at https://www.jdeploy.com/~YOUR-APP-NAME where YOUR-APP-NAME is the name specified in the name property of your package.json file.

Publishing New Versions

If you make changes to your app, and want to publish a new version, you can increment the version property of your package.json file, and run jdeploy publish again.

File Associations

jDeploy allows you to associate your application with file mimetypes and extensions. For example, you can associate your application with .txt files so that it is listed as one of the options when users right click on a .txt file and select "Open with". Additionally, your application will respond when text files are dropped onto your app icon.

You can add file associations in the "Filetypes" tab of the GUI. Alternatively see File Associations In package.json for a description of how to add the associations directly in the package.json file.

To add a new document type, press the button. To remove a document type, press the button in the corresponding row.

Each file type row includes the following fields:

Extension: The file extension. E.g. txt, html, mp4. Do not include the "dot".
Mimetype: The corresponding mimetype of the extension. You should provide both the extension and mimetype in each row, as some operating systems rely more heavily on one than the other.
Editor: Check this box if your app can edit files of this type. Leave it unchecked if it can only view files of this type.
Custom: Check this box if this is a custom mimetype. This is used on Linux as an indicator that the installer needs to register the mimetype in the system’s mimetype database.

File Associations In package.json

Such file associations can registered by adding the documentTypes property to the jdeploy object. E.g.

...
"jdeploy" : {

    ...
    "documentTypes" : [
      {
        "extension" : "txt",
        "mimetype" : "text/plain",
        "editor" : true
      }, {
        "extension" : "html",
        "mimetype" : "text/html"
      }, {
        "extension" : "jdtext",
        "mimetype" : "application/x-jdeploy-demo-texteditor-jdtext"
      }, ....
    ],
}
...

The documentTypes array may contain zero of more object entries, with the following properties:

extension: The extension of the file type. E.g. txt, html, etc…
mimetype: The mimetype of the file type. E.g. text/plain, text/html, etc…
editor: Boolean indicating whether the application can edit the file type. If omitted or false, the application will be regarded as a "viewer" for this file type.
custom: Boolean indicating whether this is a custom file type for your app. This is currently only used for .deb installers so that it knows whether it needs to register the mimetype with the system. Default is false

Accessing Files In Java

When a user launches your app by opening an associated file type (e.g. by dragging the file on your app icon, or selecting your app in the "Open with" menu), you will likely want to know which file triggered the launch. On Windows and Linux, these file paths are passed as arguments in your main() method. E.g.

On Linux and Windows opened files can be accessed in your main args.

public static void main(String[] args) {

    if (args.length > 0) {
        System.out.println("Received "+args.length+" file arguments");
        for (int i=0; i<arg.length; i++) {

            System.out.println("File: "+args[i]);
        }
    }
}

On Macintosh, you need to use the java.awt.Desktop class to be notified when the user opens a file with your app.

Using the FileHandler interface with the Desktop class to be notified when users open files with your app on Mac OS.

import java.awt.*;
import java.awt.desktop.OpenFilesHandler;
import java.awt.desktop.OpenFilesEvent;

public class HelloApplication {
    static {
        try {
            Desktop.getDesktop().setOpenFileHandler(new FileHandler());
        } catch (Exception ex){}
    }

    ...

    public static class FileHandler implements OpenFilesHandler {

        @Override
        public void openFiles(OpenFilesEvent e) {
            System.out.println("Received open files event "+e.toString());
        }
    }

    ...
}

URL Schemes

jDeploy allows you to register your application to open URLs with specific schemes so that, when a user clicks on a link with that URL scheme, your application will be launched.

You can add URL schemes in the URLs tab of the GUI. To add url schemes directly in the package.json file, see URL Schemes in package.json.

For example, you if you specify the "myapp" URL scheme, then you could add a link on your website as follows:

<a href="myapp:some-data">Open My App</a>

When users who have your app installed click on this link, they will be prompted to launch your app. When you app launches, you’ll be able to detect the specific URL that was clicked, so that you can respond appropriately.

The URLs tab is shown here:

In the above example, the app would be associated with URLs like "jdtext:xxxxxx".

Adding Multiple URL Schemes

To add multiple URL schemes, you can simply add multiple values separated by commas in the text field.

e.g.

"myapp,podcast,feed"

In this case the app would respond to URLs like "myapp:…", "podcast:…", and "feed:…"

Standard URL Schemes

You can associate your app with both custom schemes, and standard schemes. For a list of standard URL schemes that you might want your app to be ableto handle, see this wikipedia entry.

URL Schemes in package.json

Do this by adding a urlSchemes property of the jdeploy object with an array of string schemes.

E.g.:

"jdeploy" : {

  ...
  "urlSchemes" :  ["jdtext"]
  ...
}

With the above configuration in the package.json file, your app would be launched when the user clicks links like "jdtext:…." in a webpage.

E.g.

Example HTML with link that will open in your app, assuming you have registered the "jdtext" URL scheme.

...
<p>Testing the custom jdtext url scheme.  <a href="jdtext:hello">CLick here</a></p>
...

Accessing URLs In Java

When a user launches your app by clicking on a link, you will likely want to know the URL that triggered the launch. On Windows and Linux, these URLs paths are passed as arguments in your main() method. E.g.

On Linux and Windows opened files can be accessed in your main args.

public static void main(String[] args) {

    if (args.length > 0) {
        System.out.println("Received "+args.length+" URL arguments");
        for (int i=0; i<arg.length; i++) {

            System.out.println("URL: "+args[i]);
        }
    }
}

On Macintosh, you need to use the java.awt.Desktop class to be notified when the user opens a URL with your app.

Using the URIHandler interface with the Desktop class to be notified when users open URLs with your app on Mac OS.

import java.awt.Desktop;
import java.awt.desktop.OpenURIEvent;
import java.awt.desktop.OpenURIHandler;

public class HelloApplication {
    static {
        try {
            Desktop.getDesktop().setOpenURIHandler(new URIHandler());
        } catch (Exception ex){}
    }

    ...

    public static class URIHandler implements OpenURIHandler {

        @Override
        public void openURI(OpenURIEvent e) {
            System.out.println("Received open uri event "+e.toString());
        }
    }

    ...
}

Homepage Verification

When users install your app, they will be prompted with a warning dialog to remind them to only install software from trusted sources. They are encouraged to review the app’s homepage to ensure that they trust the developer before proceeding with the installation. The dialog will look something like:

By default it will report the software’s verified homepage to be the npmjs.org package page for your app. If you want this to report your actual website or GitHub repository, you’ll need to enter your your website URL into the "Homepage" field the "Details" tab, and then verify ownership.

To verify ownership of this page, you’ll need to copy and past your app’s SHA256 hash code into your website. You can begin this process by pressing the "Verify" button beside the Homepage text field. It will display a dialog like the following:

Click on the SHA256 hash code in this dialog to have it copied to the clipboard. Then paste it somewhere in your webpage. This can be hidden inside a meta tag, or just placed into the text of the page. As long as the jDeploy installer can make an HTTP request to your homepage and find the code amongst the page content.

Important

The sha256 hash code is generated based on the package name and the homepage URL, so if you change the homepage URL, the hash will change, and you’ll have to re-verify.

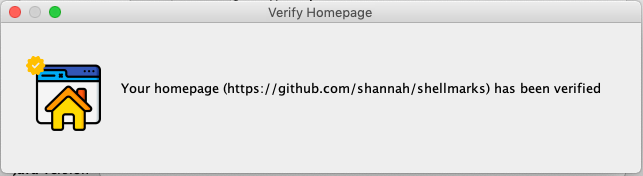

Once you have added the code to your homepage, press the "Verify" button so that jDeploy can check it. If everything looks good, you’ll see a success dialog like the following:

Important

This verification step is just a sanity check to ensure that you’ve pasted the code correctly. It doesn’t store this verification anywhere, and the jDeploy installer will perform its own check at install time whenever a user installs your app. This means that you shouldn’t remove the code after verification. You should leave it there permanently - or at least as long as you want your installers to be able to verify to your homepage.

Command-line Distribution

Apps distributed using jDeploy can also be installed in the command-line using npm. When distributing in this way, you’ll want to pay attention to the bin and name properties of your package.json file.

name: This is the name of our project as it will be listed in the NPM registry. This name must be unique. If you try to publish a project with a name that is already registered by someone else, it will fail. This name will be used by users who want to install your app. E.g. If "name"= "hello-world", then people would install my app by typing "npm install hello-world -g" at the command prompt.
bin: This specifies the name of the command that will be installed to activate your app. It actually maps an alias to the "jdeploy-bundle/jdeploy.js" script, which is thin bootstrap shell script for your java app. The entry will look like "bin" : {"hello-world" : "jdeploy-bundle/jdeploy.js"}. If you want to change your app’s command name to "my-hello-world", then you would just change "hello-world" to "my-hello-world".

You don’t need to do anything special to allow your app to be installed via the command-line. If you have published it using the jdeploy publish command, then, assuming your package name is "hello-world", users will be able to install your app by typing:

$ npm install hello-world -g

Some things to note:

On Mac and Linux you’ll need to use sudo as it adds a symlink to /usr/local/bin which requires sudo permissions. On Windows it will work without sudo as long as you are using an Administrator account.
If you omit the -g it will install the app locally (i.e. for use inside the current working directory). When installed in this way, you need to use the npx command to run your app, and it will only work when run inside the install directory.

They can then launch your app with:

$ hello-world

or, if they installed it locally, they would instead run it with:

$ npx hello-world

See Getting Started with jDeploy for Command-line apps for step-by-step instructions in deploying your command-line app.

Runtime Arguments

jDeploy allows you to configure JVM options, system properties, and program arguments for your application in the Runtime Args tab of the GUI, or the args property of the jdeploy object in the package.json file.

When working in the GUI, you should enter the arguments one per line in the provided text area. jDeploy supports a small set of placeholder variables that you can include in your arguments, that will be replaced at runtime. It also supports a minimal syntax for making platform-specific arguments, which are used on some platforms and not others.

Figure 6. A sample Runtime Args tab demonstrating how to set a few JVM options, properties, and program arguments.

The above arguments would be saved in the package.json file as follows:

{
    ...
    "jdeploy": {
        ...
        "args": [
            "-Dmyapp.foo=bar",
            "-Xmx2G",
            "-D[mac]application.support.dir={{ user.home }}/Library/Application Support",
            "-D[mac]resources.dir={{ app.path }}/Contents/Resources",
            "gui"
        ],
        ...

JVM Options

JVM options are options that configure how the JVM works. They are always marked with the "-X" prefix. Some examples of commonly-used JVM options include:

-XmsXXX: Sets the minimum and initial size of the heap. E.g. -Xms2G. See the Java documentation for more information.
-XmxXXX: Sets the maximum sizeof the heap. E.g. -Xmx4g. See the Java documentation for more information.

System Properties

You can set system properties using the -D prefix. E.g. -Dmyapp.setting=foobar

Program Arguments

Arguments that are not prefixed with -X or -D are treated as program arguments. They will be passed to your program, and you can receive them in your main(String[] args) method.

Placeholder Variables

jDeploy supports a handful of placeholder variables that can be embedded in your run arguments, and will be replaced with the appropriate value at runtime. Placeholder variables are marked with {{ varname }}. The available variables are as follows:

{{ user.home }}: The path to the user’s home directory.
{{ exe.path }}: The path to the executable.
{{ app.path }}: The path to the .app bundle (when run on Mac). Otherwise it will be the same as {{ exe.path }}.

Platform-Specific Arguments

In some cases you may want a setting to only be applied on a specific platform. For example some JVM options may be mac specific. jDeploy provides a minimal syntax for marking an argument as platform-specific. For system properties, you would add a condition after the -D prefix, so instead of -Dfoo=bar, you would have -D[CONDITION]foo=bar where CONDITION is one or more platform names ("mac-x64", "mac-arm64", "linux", "win") delimited by pipes. Some examples:

-D[mac]foo=bar: Same as -Dfoo=bar, but only on Mac.
-D[win]foo=bar: Same as -Dfoo=bar, but only on Windows.
-D[win|linux]foo=bar: Same as -Dfoo=bar, but only on Windows and Linux.

A similar syntax is used for platform-specific JVM options: -X[CONDITION]value, where CONDITION is one or more platform names ("mac-x64", "mac-arm64", "linux", "win") delimited by pipes. Some examples:

-X[mac]ms2G: Same as -Xms2G, but only on Mac.
-X[mac|linux]mx4G: Same as -Xmx4G, but only on Mac and Linux.

Finally, for program arguments (i.e. arguments that are passed to your main(args) method), you can mark them as platform-specific by adding a -[CONDITION] prefix. E.g. -[mac]anArgOnlyAddedOnMac. Some more examples:

-[mac]foo: Same as foo, but only on Mac.
-[linux|win]foo: Same as foo, but only on Linux and Windows.

Publishing as Web App (CheerpJ)

jDeploy includes experimental support for deploying Java Swing/AWT-based applications as progressive web apps. From the CheerpJ website:

CheerpJ is a WebAssembly-based Java Virtual Machine for the browser. It has extensive compatibility with Java 8 and provides a full runtime environment1 for running Java applications, applets, libraries, and Java Web Start / JNLP applications in the browser without plugins.

This is currently experimental. Limitations include:

Only Swing/AWT UIs are supported currently. No JavaFX.
Some 3rd-party java libraries may not be supported. You can try to build and find out.

Important

Please read the CheerpJ licensing options before deploying your application, to ensure that you are fully compliant.

To enable CheerpJ support, you should add a "cheerpj" property to the "jdeploy" object in the package.json file. E.g.:

"jdeploy": {
       ...
        "cheerpj": {
            "githubPages": {
                "branchPath": "{{ branch }}",
                "tagPath": "app",
                "branch": "gh-pages",
                "enabled": true
            },
            "enabled": true
        },
    },
...

The above configuration will be used by the github action to publish a web application via github pages.

The following properties, pertaining to Cheerpj, are available.

jdeploy.cheerpj: Boolean value indicating whether the github action should attempt to build the app as a web app using CheerpJ.
jdeploy.cheerpj.githubPages: Object with configuration properties for GitHub pages.
jdeploy.cheerpj.githubPages.enabled: Whether to publish to GitHub pages. Boolean.
jdeploy.cheerpj.githubPages.branch: The branch to use for publishing to GitHub pages. This should match the branch that is configured for GitHub pages on GitHub.
jdeploy.cheerpj.githubPages.branchPath: The path within the pages site where the app should be published for "branch" commits. You can use the {{ branch }} placeholder to include the name of the branch. It will be replaced by the name of the branch on which the commit occurred.
jdeploy.cheerpj.githubPages.tagPath: The path within the pages site where the app should be published for "tag" releases. You can use the {{ tag }} placeholder to include the name of the tag in the path. It will be replaced by the name of the tag.
jdeploy.cheerpj.githubPages.path: Optional. If you want branch commits and tag commits to be published to the same path, then you can use this to set them both in one place.

Tip	The jDeploy IntelliJ Plugin includes a GUI form for configuring CheerpJ in the jDeploy Settings dialog.

Building Bundles Locally

Important

When building your bundles locally, you still need to ensure that you run jdeploy publish to publish your app on npm, as the launcher relies on your published package for the automatic updates feature.

The easiest way to distribute your app is to just share the link to its download page at https://www.jdeploy.com/~your-app-name, however, you can optionally just generate your bundles locally as part of the jdeploy package step (which is included when you run jdeploy publish).

There are two flavors of packages that you can create:

bundles: The .exe, .app, etc.. bundles that launch your app directly.
installers: The installers that you can distribute to your users which install your .exe/.app, etc… bundles.

If you want to distribute your app to users, the installers provide a better experience since they include options to, for example, add your app to the programs menu (Windows/Linux) or the Dock (Mac).

You can generate bundles via the bundles property of the jdeploy object in your package.json file. E.g.

{
  ...
  "jdeploy" : {
    ...
    "bundles": ["mac-x64", "mac-arm64", "win", "linux"],
  }

}

With this setting the jdeploy package command (and jdeploy publish) will generate your app bundles in the jdeploy/bundles directory. If you only wanted to generate a "mac" bundle for Intel macs, you would do:

"bundles" : ["mac-x64"]

To generate installers, you can add the "installers" property. E.g.

"installers" : ["mac-x64", "mac-arm64", "win", "linux"]

This would result in installer bundles being generated in the jdeploy/installers directory.

Note	The installers generated in this way may differ slightly from the installers available on your download page. This is because the download page uses a different mechanism for generating the packages. Additionally, the download page may provide some installer types that aren’t available locally.

Publishing on GitHub

Important

You must publish your releases to a public repository, or your app installer won’t be able to download updates. If your repository is private, you can use the target_repository parameter for the GitHub action to publish your installers to a different repository that is public.

As of jDeploy 4.0, you can deploy your application on GitHub packages instead of npm. When deploying bundles in this way, you do not require an npm account. Some of the features of this deployment style include:

GitHub actions integration to automate deployments on push/release/tag.
Publish app artifacts in the GitHub release itself.
Branch-App Synchronization: Distribute app bundles that are automatically synchronized with a specific branch of your repo.
Multiple Streams: Distributed multiple versions of your app (e.g. "dev", "stage", "production") that are synchronized to different branches of your repository.
Still includes support for jDeploy Download page. In addition to publishing apps as artifacts of GitHub releases, your bundles will still be available at jdeploy.com on your download page.

Publishing Releases with GitHub Actions

Tip	The jDeploy IntelliJ Plugin provides a project wizard that includes project templates for Codename One, Swing, and JavaFX, which are plug-and-play, including full support for publishing releases using GitHub actions.

To publish your packages on GitHub, you’ll need to add the following to your workflow.

- name: Publish with jDeploy
  uses: shannah/jdeploy@master
  with:
    github_token: '${{ github.token }}'

This should be placed in a step after you have built your app already (e.g. using maven, gradle, ant, etc…).

Tip	See example workflow for the SwingSet app

If this action is used in a workflow on a merge or push, then it will publish artifacts on a release named after the branch that the workflow is running on.

E.g. If this workflow runs on the "master" branch, then it will publish your app bundles as artifacts on a tag named "master".

E.g. https://github.com/shannah/swingset2/releases/tag/master

If this action is used in a workflow on a release or tag action, then it will add the app bundles as artifacts directly on the release/tag in GitHub.

Tip	You can add a working workflow to your app using the jDeploy GUI, by selecting "File" > "Add Github Workflow"

Your App Download Page

The URL convention for the jDeploy download page for apps hosted on GitHub is:

https://www.jdeploy.com/gh/YOUR_GITHUB_ACCOUNT/YOUR_REPO_NAME

E.g. The SwingSet app whose repository is located at https://github.com/shannah/swingset2, will have download page at https://www.jdeploy.com/gh/shannah/swingset2.

To access the download page for a specific branch you can append the branch name to the URL. E.g. The download for the "Swing Set 2 (master)" app, which is synchronized with the "master" branch, the URL would be:

https://www.jdeploy.com/gh/shannah/swingset2/master

Distributing Mac App as a DMG image

By default, MacOS apps are distributed as an installer, which is signed and notarized by jDeploy, so you don’t need to sign it with your own Apple developer certificate. However, if you would prefer to sign the app with your own certificate, you can distribute it as a DMG instead of an installer, you can do this via the jDeploy DMG GitHub action.

The IntelliJ plugin project templates include a DMG job in the GitHub workflow by default, but you do need to define a configuration variable and some secrets in your repository.

For full instructions, see the README.

See: Example release produced by this action.

Publishing Releases for Private Repositories

Your release artifacts must be published to a public repository in order for the jDeploy installer to be able to download updates for your app. If your repository is private, you can publish your releases in a different repository which is public.

Step One: Create a Public Repository for your Releases

For example, consider a scenario where your app is in the private repository yourname/yourapp. Then you could create a new public repository at yourname/yourapp-releases.

Important

Make sure you make at least one commit to this repo before publishing releases to it, or GitHub won’t allow you to add a release. E.g. Add a readme file to the repo.

Step Two: Create a Personal Access Token

In order to publish releases to a different repository, you’ll need to create a personal access token that has permission to create releases in the other repository.

Learn more about personal access tokens.

Once you’ve created the personal access token, you’ll need to add it as a secret in your repository.

Step Three: Specify the target_repository in your workflow

Finally, you’ll need to modify the invocation of the jdeploy GitHub action to use the target_repository parameter, and change the github_token parameter to use your personal access token instead of the default github_token.

- name: Publish with jDeploy
  uses: shannah/jdeploy@master
  with:
    github_token: '${{ secrets.YOUR_PERSONAL_ACCESS_TOKEN }}'
    target_repository: 'yourname/yourapp-releases'

The next time your run the workflow, it should publish the releases to the yourapp-releases repository instead of the yourapp repository.

File	Description
icon.png	The icon for your app
installsplash.png	The splash screen to display in the installer.
package-info.json	A JSON file including all of the package information about your app.

File

Description


The icon for your app


The splash screen to display in the installer.

package-info.json

A JSON file including all of the package information about your app.

The "jdeploy" tag

This action will add (and update) a tag named "jdeploy" to your repo, with a file named "package-info.json". This tag must not be deleted. The package-info.json file is used by both the jDeploy launcher and installer obtain details about your app, so that it knows what versions are available.

The jDeploy JavaFX Starter Project Template

If you’re starting out with a new JavaFX project, then the jdeploy-javafx-starter may be what you’re looking for. It provides you with a bare-bones JavaFX maven project, based on the official openjfx javafx-archetype-simple archtype, but it comes loaded with a GitHub workflow to auto-generate native installers for all branches and releases.

Getting started is as simple as pressing "Use this template", and you’ll be all set.

See https://github.com/shannah/jdeploy-javafx-starter for details.

Appendix: package.json Reference

jDeploy uses the package.json file to store all of its configuration details for a project. When you run jdeploy init it will create a default package.json file in the current working directory with default settings.

Note	For full documentation on the package.json file and its standard properties, see the npm package.json documentation.

Most of the jDeploy-related settings are located inside the "jdeploy" object. E.g.

{
    ...
    "jdeploy" : {
        "jar" : "dist/my-app.jar"
        ...
    }
}

However, there are a few properties at the "root" level that will affect how jDeploy deploys your application.

Main Root-Level Properties

The following standard properties are important to jDeploy.

Property Description Required Default

Property	Description	Required
name	The name used to install your app from NPM. This must be unique in the NPM registry. E.g. If your "name" is	Yes
bin	An map containing the binaries for your application. This must contain at least one entry whose key is the name of your app as it will be called on the command-line, and value is "jdeploy-bundle/jdeploy.js"	Yes
dependencies	Must include a dependency on the "shelljs" library. `"dependencies": {"shelljs": "^0.8.4"}`	Yes

name

The name used to install your app from NPM. This must be unique in the NPM registry. E.g. If your "name" is

Yes

bin

An map containing the binaries for your application. This must contain at least one entry whose key is the name of your app as it will be called on the command-line, and value is "jdeploy-bundle/jdeploy.js"

Yes

dependencies

Must include a dependency on the "shelljs" library. "dependencies": {"shelljs": "^0.8.4"}

Yes

For other root-level properties see npm package.json documentation

Basic jDeploy Object Properties

The following properties should be placed inside the "jdeploy" object of the package.json, and are almost always used.

Property Description Type Required Default

Property	Description	Type	Required	Default
buildCommand	Optioknal build command that can be used to build the project before packaging. This is typically used for JavaFX projects that are built using Maven or Gradle. E.g. `"buildCommand": ["mvn", "package"]`	Array<String>	No	None
javaVersion	The Major java version to use for your app’s runtime. E.g. "8", "11", "17", "21", etc..	String	No	"17"
jdk	Whether the app requires the full JDK to run. `true` or `false`	boolean	No	`false`
javafx	Whether the app requires JavaFX to run. `true` or `false`	boolean	No	`false`
javafxVersion	Optional JavaFX version to use. If you don’t specify this, then it will just use whatever version comes with the ZuluFX Java distribution.	String	No	None
jar	Relative path to the executable jar file that contains your app. You should supply either "war" or "jar", but not both. This value may be the path to a file, or a glob pattern (e.g. using `*` and `?`) that can be used to match a file.	String	No
title	The human-readable title of your app. This is used in the download page, and in the app and installer names.	String	No	A modified version of the package name.
war	Relative path to a war file, or web-app directory that contains your web app. You should supply either "war" or "jar", but not both. This value may be the path to a file, or a glob pattern (e.g. using `*` and `?`) that can be used to match a file.	String	No

buildCommand

Optioknal build command that can be used to build the project before packaging. This is typically used for JavaFX projects that are built using Maven or Gradle. E.g. "buildCommand": ["mvn", "package"]

Array<String>

None

javaVersion

The Major java version to use for your app’s runtime. E.g. "8", "11", "17", "21", etc..

String

"17"

jdk

Whether the app requires the full JDK to run. true or false

boolean

false

javafx

Whether the app requires JavaFX to run. true or false

boolean

false

javafxVersion

Optional JavaFX version to use. If you don’t specify this, then it will just use whatever version comes with the ZuluFX Java distribution.

String

None

jar

Relative path to the executable jar file that contains your app. You should supply either "war" or "jar", but not both. This value may be the path to a file, or a glob pattern (e.g. using * and ?) that can be used to match a file.

String

title

The human-readable title of your app. This is used in the download page, and in the app and installer names.

String

A modified version of the package name.

war

Relative path to a war file, or web-app directory that contains your web app. You should supply either "war" or "jar", but not both. This value may be the path to a file, or a glob pattern (e.g. using * and ?) that can be used to match a file.

String

Advanced jDeploy Object Properties

The following properties may be placed in the "jdeploy" object of the package.json file.

Property Description Type Required Default

Property	Description	Type	Required	Default
args	List of runtime arguments. See Runtime Arguments.	Array<String>	No	None
bundles	List of the platforms to build bundles for when you run `jdeploy package`. E.g. `["mac-x64", "mac-arm64", "win", "linux"]`. Bundles will be built in the `jdeploy/bundles` directory. Not related to the bundles available on the download page. See Building Bundles Locally.	Array	No	None
files	List of copy rules for copying files into the the deployed application bundle. By default, for executable jar deployments, it will copy the jar file and all files listed in the jar’s class path (from its manifest file); and for war deployments, it will just copy what is inside the war file. If you need additional files to be deployed (e.g. native libs or resources), then you should specify them in this list. See Copy Rules.	Array	No
documentTypes	Array of file association objects. See File Associations.	Array	No
urlSchemes	Array of URL schemes to associate with your app. See URL Schemes.	Array	No
installers	List of the platforms to build installers for when you run `jdeploy package`. E.g. `["mac-x64", "mac-arm64, "win", "linux"]`. Installers will be built in the `jdeploy/installers` directory. Not related to the bundles available on the download page. See Building Bundles Locally.	Array	No	None
jdeployVersion	Optionally specify the version of jDeploy that should be used for building bundles and installers.	String	No	None
port	For war deployments, this specifies the port that the Jetty wrapper should bind to. This can be overridden at runtime using the `-Djdeploy.port` or `-Dport` command-line flags, or via the `PORT` environment variable. If this option is omitted, and no port is specified at runtime, it will use "0" as the port, which will cause it to bind to a random open port.	int	No	0
antFile	Set the ant build file to use for the `preCopyTarget` and `postCopyTarget` options.	String	No	build.xml
preCopyTarget	You can optionally specify ANT to run a target before copying files to the `jdeploy-bundle` directory. You can specify the ant build script that contains the target using the `antFile` property.	String	No
postCopyTarget	Optional ANT target to be run after files have been copied to the `jdeploy-bundle` directory. You can specify the ant build script that contains the target using the `antFile` property.	String	No
preCopyScript	Optional script to be executed before copying files to the `jdeploy-bundle` directory.	String	No
postCopyScript	Optional script to be executed after copying files to the `jdeploy-bundle` directory.	String	No

args

List of runtime arguments. See Runtime Arguments.

Array<String>

None

bundles

List of the platforms to build bundles for when you run jdeploy package. E.g. ["mac-x64", "mac-arm64", "win", "linux"]. Bundles will be built in the jdeploy/bundles directory. Not related to the bundles available on the download page. See Building Bundles Locally.

Array

None

files

List of copy rules for copying files into the the deployed application bundle. By default, for executable jar deployments, it will copy the jar file and all files listed in the jar’s class path (from its manifest file); and for war deployments, it will just copy what is inside the war file. If you need additional files to be deployed (e.g. native libs or resources), then you should specify them in this list. See Copy Rules.

Array

documentTypes

Array of file association objects. See File Associations.

Array

urlSchemes

Array of URL schemes to associate with your app. See URL Schemes.

Array

installers

List of the platforms to build installers for when you run jdeploy package. E.g. ["mac-x64", "mac-arm64, "win", "linux"]. Installers will be built in the jdeploy/installers directory. Not related to the bundles available on the download page. See Building Bundles Locally.

Array

None

jdeployVersion

Optionally specify the version of jDeploy that should be used for building bundles and installers.

String

None

port

For war deployments, this specifies the port that the Jetty wrapper should bind to. This can be overridden at runtime using the -Djdeploy.port or -Dport command-line flags, or via the PORT environment variable. If this option is omitted, and no port is specified at runtime, it will use "0" as the port, which will cause it to bind to a random open port.

int

antFile

Set the ant build file to use for the preCopyTarget and postCopyTarget options.

String

build.xml

preCopyTarget

You can optionally specify ANT to run a target before copying files to the jdeploy-bundle directory. You can specify the ant build script that contains the target using the antFile property.

String

postCopyTarget

Optional ANT target to be run after files have been copied to the jdeploy-bundle directory. You can specify the ant build script that contains the target using the antFile property.

String

preCopyScript

Optional script to be executed before copying files to the jdeploy-bundle directory.

String

postCopyScript

Optional script to be executed after copying files to the jdeploy-bundle directory.

String

Copy Rules

The "jDeploy/files" array includes zero or more copy rules. Each copy rule is an object that may contain the following properties:

Property	Description	Type	Required	Default
dir	The relative path to the directory from which files are to be copied.	String	Yes
includes	Specifies files to be included in the copy. Either an array of glob patterns, or a comma-delimited string of glob patterns. The glob pattern uses PathMatcher globs. E.g. "*/.dll".	String or Array	No	All files in dir
excludes	Specifies files to be excluded from the copy. Either an array of glob patterns, or a comma-delimited string of glob patterns. The glob pattern uses PathMatcher globs.	String or Array	No	None

Property

Description

Type

Required

Default

dir

The relative path to the directory from which files are to be copied.

String

Yes

includes

Specifies files to be included in the copy. Either an array of glob patterns, or a comma-delimited string of glob patterns. The glob pattern uses PathMatcher globs. E.g. "*/.dll".

String or Array

All files in dir

excludes

Specifies files to be excluded from the copy. Either an array of glob patterns, or a comma-delimited string of glob patterns. The glob pattern uses PathMatcher globs.

String or Array

None

Example Copy Rules*

{
  ...
  "jdeploy" : {
    "files" : [
        {"dir" : "dist", "includes": "lib/*.dll,lib/*.so,lib/*.dylib"}
    ]
  }
  ...
}

This would copy all of the dll, so, and dylib files from "dist/lib" into the jdeploy-bundle directory for deployment.

Automatic jar/war file Resolution

The "jDeploy/jar" and "jDeploy/war" properties specify the location of the jar or war file that constitutes the application. jdeploy init will scan the current directory for eligible jar, war, and web app directories and set the shallowest candidate in the "jDeploy/jar" or "jDeploy/war" directive of the package.json. If you delete this value, or you omit it from the package.json, jdeploy install and jdeploy publish will perform the same search for an appropriate candidate.

Examples

{
  "bin": {"hellojdeploy": "jdeploy-bundle/jdeploy.js"}, // (1)
  "preferGlobal": true, (2)
  "version": "1.0.1",
  "jdeploy": {"jar": "dist/HelloJDeploy.jar"}, (3)
  "dependencies": {"shelljs": "^0.8.4"},
  "license": "ISC",
  "name": "hello-jdeploy", (4)
  "files": ["jdeploy-bundle"] (5)
}

Once installed, the binary name of our app will be "hellojdeploy". I.e. we would start the app by typing "hellojdeploy" at the command prompt.
Indicates that NPM should prefer to install the app globally. If people forget to include the "-g" flag when they try to install the app, they will get a warning.
The executable Jar file that we are deploying is located at "dist/HelloJDeploy.jar".
The command to install the app would be npm install -g jdeploy-bundle

The above package.json deploys an app such that it would be installed with

npm install -g hello-jdeploy

And it would be installed as "hellojdeploy", so that it could be run on the command line:

hellojdeploy

Appendix: Building Executable Jar File

Tip	The jdeploy-javafx-starter template comes preloaded with everything necessary to distribute your app as native installer. If you’re starting fresh, we recommend you start with that template. The following section describes how to modify existing maven projects to produce an executable Jar file.

jDeploy essentially converts an executable Jar file into native bundles for Mac, Windows, and Linux. An Executable Jar file is essentially just a Jar file that can be run via java -jar TheJar.jar. The distinguishing feature of an executable jar file (vs a regular jar file) is that it includes directives in its manifest that specify the "Main" class to run, and a "Class-Path" (i.e. a list of dependencies). Most IDEs and build tools have built-in support for generating executable Jar files. In some cases, however, you may need to explicitly enable this.

Executable Jar Files in Maven

The two most common strategies to produce executable jars in Maven are using either a combination of the maven-dependency-plugin and the maven-jar-plugin, or using the maven-assembly-plugin. The latter approach (maven-assembly-plugin) can generate a single "fat" jar with all of your dependencies. The former approach (maven-dependency-plugin and maven-jar-plugin) places your dependencies in a "libs" directory.

Tip	An alternate approach is to add the spring-boot-starter module as a parent in your pom.xml file. It will include all the configuration necessary to build your app as an executable "uber" jar.

Using the maven-dependency-plugin and maven-jar-plugin

In Maven, for example, you will need to use the the maven-dependency-plugin and maven-jar-plugin plugins to package up all the dependencies, and add the appropriate manifest entries to make the jar executable. The following snippet can be added to the <build>/<plugins> section of your pom.xml file.

<plugin>
    <groupId>org.apache.maven.plugins</groupId>
    <artifactId>maven-dependency-plugin</artifactId>
    <executions>
        <execution>
            <id>copy-dependencies</id>
            <phase>prepare-package</phase>
            <goals>
                <goal>copy-dependencies</goal>
            </goals>
            <configuration>
                <outputDirectory>
                    ${project.build.directory}/libs
                </outputDirectory>
            </configuration>
        </execution>
    </executions>
</plugin>
<plugin>
    <groupId>org.apache.maven.plugins</groupId>
    <artifactId>maven-jar-plugin</artifactId>
    <configuration>
        <archive>
            <manifest>
                <addClasspath>true</addClasspath>
                <classpathPrefix>libs/</classpathPrefix>
                <mainClass>
                    com.example.YourMainClass
                </mainClass>
            </manifest>
        </archive>
    </configuration>
</plugin>

You will need to change the <mainClass>com.example.YourMainClass</mainClass> entry to point to the main class of your app.

Using the maven-assembly-plugin

The maven-assembly-plugin is an alternate way to produce an executable jar. It will generate a "fat" jar with all dependencies.

Note	With jDeploy there is no benefit to "fat" jar because your app will be bundled as a native bundle anyways.

The following snippet can be added to the <build>/<plugins> section of your pom.xml file.

<plugin>
    <artifactId>maven-assembly-plugin</artifactId>
    <version>2.4</version>
    <executions>
        <execution>
            <id>build-publisher</id>
            <configuration>
                <appendAssemblyId>false</appendAssemblyId>
                <archive>
                    <manifest>
                        <mainClass>com.example.YourMainClass</mainClass>
                    </manifest>
                </archive>
                <descriptorRefs>
                    <descriptorRef>jar-with-dependencies</descriptorRef>
                </descriptorRefs>
                <finalName>${project.artifactId}</finalName>
            </configuration>
            <phase>package</phase>
            <goals>
                <goal>single</goal>
            </goals>
        </execution>

    </executions>
</plugin>

You will need to change the <mainClass>com.example.YourMainClass</mainClass> entry to point to the main class of your app.

Using the Spring Boot Starter

An alternate approach for generating executable jars in your app is to reference the spring-boot starter pom as the parent of your module. This will cause your project to inherit all of the nice build features that Spring boot has to offer.

The idea of using the spring boot starter may seem strange at first, since Spring is a framework for building web applications, but it was build to be modular, so it is possible to use its build tools without actually adding any dependencies to your application.

Add the following to your pom.xml file in order to use Spring boot to generate your jar:

  <parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>3.3.0</version>
    <relativePath/> <!-- lookup parent from repository -->
  </parent>


...

  <build>
    <plugins>
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
        <configuration>
          <mainClass>com.example.YourMainClass</mainClass>
        </configuration>
      </plugin>
    </plugins>
  </build>

Appendix: The jdeploy-javafx-archetype

The jdeploy-javafx-starter Github template, which provides you with a JavaFX app project and native installers out of the box, is essentially the same as the jdeploy-javafx-archetype maven archetype.

If you like to use Maven archetypes to generate your new project, you may prefer to use the archetype directly.

See https://github.com/shannah/jdeploy-javafx-starter-archetype for more information.

I generally prefer the former approach because sometimes bundling everything into a fat jar can break things. Also, when using jDeploy, there is no benefit to a fat jar, since your app is deployed as a native bundle anyways.

Appendix: Windows Installation Layout

The jDeploy application installer creates a slightly different file structure for the installed application on each platform. Additionally, the layout will depend on which version of Java your application specifies in the javaVersion property of the package.json file. Finally, the layout for apps deployed via npm will differ slightly from apps that are deployed via GitHub releases.

Windows Installation Layout for Apps Deployed via npm

Given an application with package name "myapp" and title "My App", the following file structure will be created on Windows:

If the app uses Java 8:

Location	Description
%HOMEPATH%/.jdeploy/apps/myapp	This is the root directory for the application. It contains the following subdirectories:
%HOMEPATH%/.jdeploy/apps/myapp/bin/My App.exe	The executable file for the application. This is the file that will be run when the user clicks on the app icon.
%HOMEPATH%/.jdeploy/apps/myapp/jre	The Java runtime environment that is bundled with the app.
%HOMEPATH%/.jdeploy/uninstallers/myapp/myapp-uninstall.exe	The uninstaller for the app. This installer will be run when you uninstall the application via Add/Remove Programs. IMPORTANT: You should not run the installer directly. Always run it via Add/Remove Programs.
%HOMEPATH%/.jdeploy/packages/myapp	This diectory contains all of your actual Java application files. This is where your jar file, war file, or web app directory will be installed.
%HOMEPATH%/.jdeploy/log/myapp/myapp.lastrun.log	The log file for the last run of the application. If you write to StdOut or StdErr in your application, this is where the output will be captured.

Location

Description

%HOMEPATH%/.jdeploy/apps/myapp

This is the root directory for the application. It contains the following subdirectories:

%HOMEPATH%/.jdeploy/apps/myapp/bin/My App.exe

The executable file for the application. This is the file that will be run when the user clicks on the app icon.

%HOMEPATH%/.jdeploy/apps/myapp/jre

The Java runtime environment that is bundled with the app.

%HOMEPATH%/.jdeploy/uninstallers/myapp/myapp-uninstall.exe

The uninstaller for the app. This installer will be run when you uninstall the application via Add/Remove Programs.

IMPORTANT: You should not run the installer directly. Always run it via Add/Remove Programs.

%HOMEPATH%/.jdeploy/packages/myapp

This diectory contains all of your actual Java application files. This is where your jar file, war file, or web app directory will be installed.

%HOMEPATH%/.jdeploy/log/myapp/myapp.lastrun.log

The log file for the last run of the application. If you write to StdOut or StdErr in your application, this is where the output will be captured.

If the app uses Java 11 or higher:

Location	Description
%HOMEPATH%/.jdeploy/apps/myapp	This is the root directory for the application. It contains the following subdirectories:
%HOMEPATH%/.jdeploy/apps/myapp/My App.exe	The executable file for the application. This is the file that will be run when the user clicks on the app icon.
%HOMEPATH%/.jdeploy/uninstallers/myapp/myapp-uninstall.exe	The uninstaller for the app. This installer will be run when you uninstall the application via Add/Remove Programs. IMPORTANT: You should not run the installer directly. Always run it via Add/Remove Programs.
%HOMEPATH%/.jdeploy/packages/myapp	This diectory contains all of your actual Java application files. This is where your jar file, war file, or web app directory will be installed.
%HOMEPATH%/.jdeploy/log/myapp/myapp.lastrun.log	The log file for the last run of the application. If you write to StdOut or StdErr in your application, this is where the output will be captured.

Location

Description

%HOMEPATH%/.jdeploy/apps/myapp

This is the root directory for the application. It contains the following subdirectories:

%HOMEPATH%/.jdeploy/apps/myapp/My App.exe

The executable file for the application. This is the file that will be run when the user clicks on the app icon.

%HOMEPATH%/.jdeploy/uninstallers/myapp/myapp-uninstall.exe

The uninstaller for the app. This installer will be run when you uninstall the application via Add/Remove Programs.

IMPORTANT: You should not run the installer directly. Always run it via Add/Remove Programs.

%HOMEPATH%/.jdeploy/packages/myapp

This diectory contains all of your actual Java application files. This is where your jar file, war file, or web app directory will be installed.

%HOMEPATH%/.jdeploy/log/myapp/myapp.lastrun.log

The log file for the last run of the application. If you write to StdOut or StdErr in your application, this is where the output will be captured.

Windows Installation Layout for Apps Deployed via GitHub Releases

The layout for apps deployed via GitHub releases is slightly different. The main difference is that the app is installed in a directory that is named after the hash of the app’s package name and version. This is to ensure that multiple versions of the same app can be installed side-by-side. Each app has a unique hash prefix that is derived from the package name and version of the app. This hash prefix is used to create a unique directory for the app. In addition, the package is installed in the %HOMEPATH%/.jdeploy/gh-packages directory, rather than the %HOMEPATH%/.jdeploy/packages directory.

If the app uses Java 8:

Location	Description
%HOMEPATH%/.jdeploy/apps/<APP_HASH_PREFIX>.myapp	This is the root directory for the application. It contains the following subdirectories:
%HOMEPATH%/.jdeploy/apps/<APP_HASH_PREFIX>.myapp/bin/My App.exe	The executable file for the application. This is the file that will be run when the user clicks on the app icon.
%HOMEPATH%/.jdeploy/apps/<APP_HASH_PREFIX>.myapp/jre	The Java runtime environment that is bundled with the app.
%HOMEPATH%/.jdeploy/uninstallers/<APP_HASH_PREFIX>.myapp.<BRANCH_NAME>/myapp-uninstall.exe	The uninstaller for the app. This installer will be run when you uninstall the application via Add/Remove Programs. IMPORTANT: You should not run the installer directly. Always run it via Add/Remove Programs.
%HOMEPATH%/.jdeploy/gh-packages/<APP_HASH_PREFIX>.myapp	This diectory contains all of your actual Java application files. This is where your jar file, war file, or web app directory will be installed.
%HOMEPATH%/.jdeploy/log/github.com/<GITHUB_USER>/<GITHUB_REPO>/myapp/myapp.lastrun.log	The log file for the last run of the application. If you write to StdOut or StdErr in your application, this is where the output will be captured.

Location

Description

%HOMEPATH%/.jdeploy/apps/<APP_HASH_PREFIX>.myapp

This is the root directory for the application. It contains the following subdirectories:

%HOMEPATH%/.jdeploy/apps/<APP_HASH_PREFIX>.myapp/bin/My App.exe

The executable file for the application. This is the file that will be run when the user clicks on the app icon.

%HOMEPATH%/.jdeploy/apps/<APP_HASH_PREFIX>.myapp/jre

The Java runtime environment that is bundled with the app.

%HOMEPATH%/.jdeploy/uninstallers/<APP_HASH_PREFIX>.myapp.<BRANCH_NAME>/myapp-uninstall.exe

The uninstaller for the app. This installer will be run when you uninstall the application via Add/Remove Programs.

IMPORTANT: You should not run the installer directly. Always run it via Add/Remove Programs.

%HOMEPATH%/.jdeploy/gh-packages/<APP_HASH_PREFIX>.myapp

This diectory contains all of your actual Java application files. This is where your jar file, war file, or web app directory will be installed.

%HOMEPATH%/.jdeploy/log/github.com/<GITHUB_USER>/<GITHUB_REPO>/myapp/myapp.lastrun.log

The log file for the last run of the application. If you write to StdOut or StdErr in your application, this is where the output will be captured.

If the app uses Java 11 or higher:

Location	Description
%HOMEPATH%/.jdeploy/apps/<APP_HASH_PREFIX>.myapp	This is the root directory for the application. It contains the following subdirectories:
%HOMEPATH%/.jdeploy/apps/<APP_HASH_PREFIX>.myapp/My App.exe	The executable file for the application. This is the file that will be run when the user clicks on the app icon.
%HOMEPATH%/.jdeploy/uninstallers/<APP_HASH_PREFIX>.myapp/myapp-uninstall.exe	The uninstaller for the app. This installer will be run when you uninstall the application via Add/Remove Programs. IMPORTANT: You should not run the installer directly. Always run it via Add/Remove Programs.
%HOMEPATH%/.jdeploy/gh-packages/<APP_HASH_PREFIX>.myapp	This diectory contains all of your actual Java application files. This is where your jar file, war file, or web app directory will be installed.
%HOMEPATH%/.jdeploy/log/github.com/<GITHUB_USER>/<GITHUB_REPO>/myapp/myapp.lastrun.log	The log file for the last run of the application. If you write to StdOut or StdErr in your application, this is where the output will be captured.

Location

Description

%HOMEPATH%/.jdeploy/apps/<APP_HASH_PREFIX>.myapp

This is the root directory for the application. It contains the following subdirectories:

%HOMEPATH%/.jdeploy/apps/<APP_HASH_PREFIX>.myapp/My App.exe

The executable file for the application. This is the file that will be run when the user clicks on the app icon.

%HOMEPATH%/.jdeploy/uninstallers/<APP_HASH_PREFIX>.myapp/myapp-uninstall.exe

The uninstaller for the app. This installer will be run when you uninstall the application via Add/Remove Programs.

IMPORTANT: You should not run the installer directly. Always run it via Add/Remove Programs.

%HOMEPATH%/.jdeploy/gh-packages/<APP_HASH_PREFIX>.myapp

This diectory contains all of your actual Java application files. This is where your jar file, war file, or web app directory will be installed.

%HOMEPATH%/.jdeploy/log/github.com/<GITHUB_USER>/<GITHUB_REPO>/myapp/myapp.lastrun.log

The log file for the last run of the application. If you write to StdOut or StdErr in your application, this is where the output will be captured.

Why is the layout different on Java 8

Apps that use Java 8 on Windows use a slightly different file structure than other versions of Java because OpenJDK 8’s support for a dedicated Java Runtime Environment (JRE) was very specific about the app structure. On Java 11 and higher, it will use the JRE specified by the JAVA_HOME environment, so the jDeploy launcher simply needs to set this value appropriately before starting the JVM. On Java 8, however, it ignores the JAVA_HOME setting when it comes to the JRE, and instead tries to find the location of the global JRE in the Windows registry.

Using a global JRE is not ideal for apps that are distributed as standalone executables, because it can lead to conflicts with other Java apps on the system, so fortunately, Java 8 provided one other option.

If the app exe resides in a folder named "bin", then the Java launcher will look for a JRE in a directory named "jre" in the same directory as the "bin" directory. E.g. If the app.exe is located at /path/to/bin/app.exe, then it will look for a JRE at /path/to/jre. In order to satisfy this requirement, and not disrupt the majority of apps, we decided to treat Java 8 specially.

We create a "jre" directory in the app’s directory, and copy the JRE into that directory, and move the app’s exe file into a "bin" directory.

Appendix: Command-Line Usage

While the GUI is recommended for most users, jDeploy can also be used entirely from the command line. This section covers installation and usage of jDeploy as a command-line tool.

Installing jDeploy CLI

jDeploy can be installed globally using npm:

npm install -g jdeploy

Note	On macOS and Linux, you may need to use `sudo` for global installation.

To verify the installation:

jdeploy --version

Basic Commands

Initializing a Project

To initialize a new jDeploy project in your existing Java application directory:

cd /path/to/your/java/app
jdeploy init

This creates a package.json file with default jDeploy configuration. The command will:

Scan for executable JAR files in your project
Create initial configuration based on your project structure
Set up default publishing settings

Publishing Your Application

To publish your application:

# First time only: Log in to npm
npm login

# Publish the application
jdeploy publish

The publish command:

Builds your application bundles
Creates installers for all supported platforms
Publishes to npm or GitHub (based on configuration)
Updates your download page on jdeploy.com

Building Packages Locally

To build packages without publishing:

jdeploy package

This creates bundles and installers in the jdeploy/bundles and jdeploy/installers directories respectively.

Advanced Commands

Cleaning Build Files

To clean all generated files:

jdeploy clean

Running in Debug Mode

For detailed logging during any command:

jdeploy --debug <command>

For example:

jdeploy --debug publish

Command-Line Options

Option	Description
--version	Display version information
--debug	Enable debug logging
--help	Show help information
--skip-build	Skip building the application (publish/package)
--skip-installers	Skip creating installers (publish/package)

Option

Description

--version

Display version information

--debug

Enable debug logging

--help

Show help information

--skip-build

Skip building the application (publish/package)

--skip-installers

Skip creating installers (publish/package)

Environment Variables

jDeploy respects the following environment variables:

Variable	Description
JDEPLOY_PORT	Override the default port for web applications
JAVA_HOME	Specify the Java installation to use
NPM_TOKEN	Authentication token for npm publishing

Variable

Description

JDEPLOY_PORT

Override the default port for web applications

JAVA_HOME

Specify the Java installation to use

NPM_TOKEN

Authentication token for npm publishing

Example Workflow

A typical command-line workflow might look like this:

# Initialize the project
cd my-java-app
jdeploy init

# Edit package.json to configure your app
# Build your Java application (e.g., mvn package)

# Test package building locally
jdeploy package

# When ready, publish
npm login
jdeploy publish

Appendix: Project Templates

When creating a new project in jDeploy, you can choose from several pre-configured project templates that provide a solid foundation for your application. These templates come with jDeploy integration and GitHub workflows already set up.

Project templates are available in the Create New Project dialog

Figure 7. The New Project form allows you to select from pre-configured templates

Built-in Templates

The following templates are available by default:

Swing Template

A basic Java Swing application template that includes:

Maven project structure
Basic Swing application window
jDeploy configuration for native bundles
GitHub workflow for automated releases

JavaFX Template

A JavaFX application template based on the official javafx-archetype-simple archetype, featuring:

Modern JavaFX application structure
FXML support for UI design
CSS styling capabilities
GitHub workflow for native installers
Auto-update configuration

Spring Boot + Swing Template

A template combining Spring Boot with Swing, offering:

Spring Boot’s dependency management
Swing UI integration
Built-in executable JAR support
jDeploy publishing configuration

Template Variables

Project templates use placeholder variables that are automatically replaced when creating a new project. The available placeholders are:

Variable	Description
{{ appName }}	The name of your application used for package naming
{{ appTitle }}	The human-readable title of your application
{{ groupId }}	The Maven group ID for your project
{{ artifactId }}	The Maven artifact ID for your project
{{ mainClass }}	The fully qualified name of your application’s main class
{{ mainClassName }}	Alternative reference to the main class name
{{ packageName }}	The Java package name for your project
{{ packagePath }}	The package name converted to a directory path (e.g., com.example becomes com/example)
{{ javaVersion }}	The Java version to be used in the project
{{ githubRepository }}	The GitHub repository where the project will be hosted
{{ githubReleasesRepository }}	The GitHub repository where releases will be published
{{ releasesUrl }}	The URL where releases will be available

Variable

Description

The name of your application used for package naming

The human-readable title of your application

The Maven group ID for your project

The Maven artifact ID for your project

The fully qualified name of your application’s main class

Alternative reference to the main class name

The Java package name for your project

The package name converted to a directory path (e.g., com.example becomes com/example)

The Java version to be used in the project

The GitHub repository where the project will be hosted

The GitHub repository where releases will be published

The URL where releases will be available

Contributing Templates

You can contribute your own project templates to the jDeploy community by submitting them to the jdeploy-project-templates repository.

Template Structure

A typical project template includes:

template/
├── src/                    # Source code directory
├── .github/workflows/      # GitHub Actions workflows
├── pom.xml                # Maven configuration
├── package.json           # jDeploy configuration
└── README.md              # Template documentation

Using Templates

To use a project template:

In the jDeploy GUI, select "Create New Project"
Choose a template from the dropdown list
Fill in the required information:
- Project name
- Application title
- Group ID
- Artifact ID
- Main class name
- Package name
- GitHub repository (if using GitHub integration)
Click "Create Project"

The template system will:

Create a new directory for your project
Replace all template placeholders with your values
Initialize a Git repository (if requested)
Set up the GitHub workflow (if enabled)

Best Practices

When creating templates:

Use the standard placeholder variables consistently
Include comprehensive documentation
Add example code that demonstrates best practices
Include GitHub workflows for automated builds and releases
Configure appropriate jDeploy settings for the template type
Test the template with different placeholder values to ensure proper substitution
